Goodman

Goodman 5 Ton 14.5 SEER2 96% AFUE 120,000 BTU Goodman Gas Furnace and AC+ Heat System - Horizontal

Goodman 5 Ton 14.5 SEER2 96% AFUE 120,000 BTU Goodman Gas Furnace and AC+ Heat System - Horizontal

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi027-GSZH506010CHPT4860D4GC9S961205DN

Regular price $7,185.00 USD
Regular price Sale price $7,185.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 60000 BTU
category: Furnaces
furnace_efficiency_afue: 96%
heating_capacity: 60000 BTU
manufacturer: Goodman
mpn: GSZH506010CHPT4860D4GC9S961205DN
subcategory: AC Units,Furnaces & Heat Pumps
type: AC Units
weight: 566

Product Description

Goodman - GSZH506010CHPT4860D4GC9S961205DN At one of the higher efficiencies on the market, the Goodman GSZH506010 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH506010 is considered a good all-around choice for many applications.

Features
  • Designed to cover a smaller house in average climates
  • 5 Ton, 15.2 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

Additional Information

MPNGSZH506010
Weight (in lbs) 329.000000
Brand/Manufacturer Goodman
Replaces GSZ160601
Cooling BTU 60,000
Heating BTU 60,000
Blower Motor Single Speed Motor
Decibel Level (dBA) 76
Horsepower 0.2 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 1 1/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 50 Amps
Min. Breaker Size 33.0 Amps
Tonnage 5 Ton
Connection Sweat
Height 41 5/8"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

3.5 to 5 Ton 24.5" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPT4860D4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPT4860D4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 3.5 to 5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPNCHPT4860D4
Weight (in lbs) 81.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 5 Ton
Style A-Coil
Certification ETL Listed
Height 24.5"
Width 26"
Depth 21 1/8"
Warranty 10 Years Parts with Online Registration

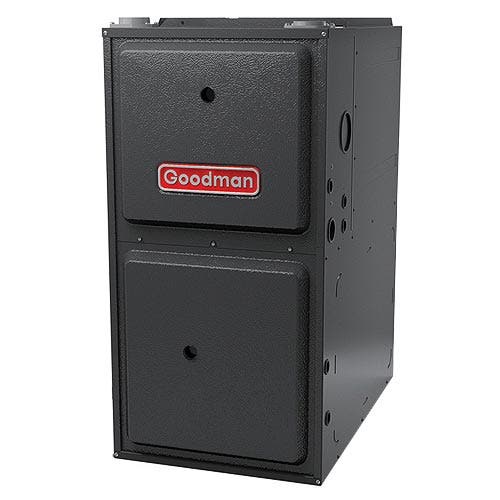

120,000 BTU 96% AFUE Single Stage Goodman Gas Furnace - Downflow/Horizontal

If you™re looking to reduce your energy bill and improve the comfort of your home, look no further than Goodman™s GC9S961205DN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The GC9S961205DN single-stage, 9-speed furnace is a great value designed for many applications.

Features
  • This furnace is ideal to heat a large house (depending on climate)
  • 120,000 BTU 96% efficient natural gas furnace
  • Requires plastic/pvc flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPNGC9S961205DN
Weight (in lbs) 156.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 120,000
Blower Motor 9 Speed - ECM
Maximum CFM 2000
Configuration Downflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Single
Fuel Type Propane, Natural Gas
Height 34.5"
Width 24.5"
Depth 28.75"
Warranty 10 Years with Online Registration
