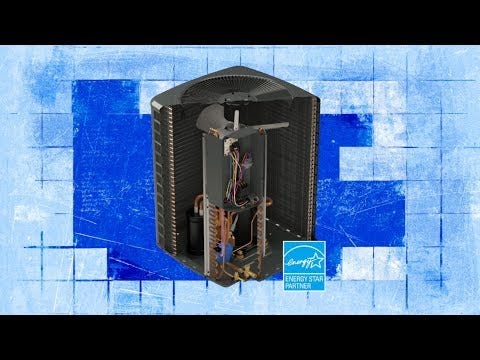

Goodman 5 Ton 15.2 SEER2 Goodman Air Conditioner Split System

Goodman 5 Ton 15.2 SEER2 Goodman Air Conditioner Split System

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi027-GSXH506010AMST60DU1400

Regular price $4,855.00 USD
Regular price Sale price $4,855.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 60000 BTU
category: Furnaces
manufacturer: Goodman
mpn: GSXH506010AMST60DU1400
subcategory: AC Units,Furnaces & Heat Pumps
type: AC Units
weight: 472

Product Description

Goodman - GSXH506010AMST60DU1400 Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH506010 is no exception, with its durability, reliability, and one of the highest efficiencies available.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 5 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPNGSXH506010
Weight (in lbs) 305.000000
Brand/Manufacturer Goodman
Replaces GSX160601
Cooling BTU 60,000
Blower Motor Two Speed ECM Motor
Decibel Level (dBA) 76
Horsepower 0.33 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 50 Amps
Min. Breaker Size 32.4 Amps
Tonnage 5 Ton
Connection Sweat
Height 41 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

5 Ton Multi-Positional Goodman Air Handler

The Goodman AMST60DU1400 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features
  • 5 ton air handler
  • Electric heat compatible
  • Multi-speed, direct drive ECM blower motor
  • Multi-positional (upflow, downflow, or horizontal)

Additional Information

MPNAMST60DU1400
Weight (in lbs) 167.000000
Brand/Manufacturer Goodman
Replaces ASPT60B14ARUF60B14
Blower Motor Multi-Speed Direct Drive ECM Motor
Maximum CFM 2070
Horsepower 0.75 HP
Electric Backup Heat Capabilities (Optional) 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
Refrigerant R410A
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/240v 1 Phase 60Hz
Max Breaker Size 15 Amps
Min. Breaker Size 8.6 Amps
Tonnage 5 Ton
Connection 3/4" FPT
Height 58"
Width 24 5/8"
Depth 21"
Warranty 10 Years Parts with Online Registration
