Goodman

Goodman 5 Ton 15 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and AC+ Heat System - Downflow

Goodman 5 Ton 15 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and AC+ Heat System - Downflow

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi027-GSZH506010CAPT4961C4GC9C961005CN

Regular price $7,257.00 USD
Regular price Sale price $7,257.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 60000 BTU
category: Furnaces
furnace_efficiency_afue: 96%
heating_capacity: 60000 BTU
manufacturer: Goodman
mpn: GSZH506010CAPT4961C4GC9C961005CN
subcategory: AC Units,Furnaces & Heat Pumps
type: AC Units
weight: 542

Product Description

Goodman - GSZH506010CAPT4961C4GC9C961005CN At one of the higher efficiencies on the market, the Goodman GSZH506010 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH506010 is considered a good all-around choice for many applications.

Features
  • Designed to cover a smaller house in average climates
  • 5 Ton, 15.2 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

Additional Information

MPNGSZH506010
Weight (in lbs) 329.000000
Brand/Manufacturer Goodman
Replaces GSZ160601
Cooling BTU 60,000
Heating BTU 60,000
Blower Motor Single Speed Motor
Decibel Level (dBA) 76
Horsepower 0.2 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 1 1/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 50 Amps
Min. Breaker Size 33.0 Amps
Tonnage 5 Ton
Connection Sweat
Height 41 5/8"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

4 to 5 Ton 21" Width Goodman Cased Evaporator Coil with TXV

The Goodman CAPT4961C4 evaporator coil is ready for any vertical installation that you need it for. With a built-in TXV kit for efficiency, the CAPT4961C4 lives up to Goodman™s expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 4 to 5 ton vertical evaporator coil
  • Installable in the upflow or downflow configuration
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Factory-installed TXV

Additional Information

MPNCAPT4961C4
Weight (in lbs) 73.000000
Brand/Manufacturer Goodman
Configuration Upflow / Downflow
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 4 Ton to 5 Ton
Style A-Coil
Height 30"
Width 21"
Depth 21"
Warranty 10 Years with Online Registration

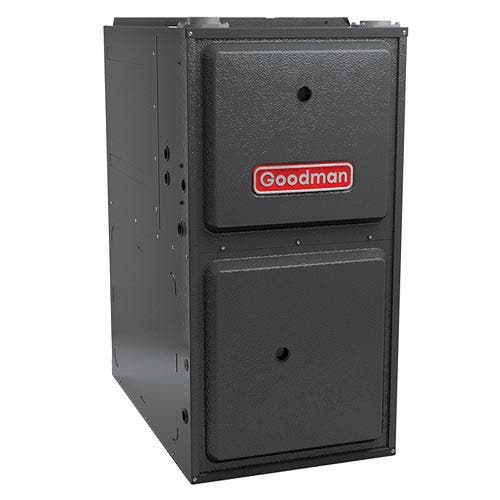

100,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Downflow/Horizontal

The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GC9C961005CN gas furnace is no exception to Goodman™s ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.

Features
  • This furnace is ideal to heat a larger house (depending on climate)
  • 100,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPNGC9C961005CN
Weight (in lbs) 140.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 100,000
Blower Motor 9-Speed - ECM
Maximum CFM 2000
Configuration Downflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Gas
Height 34.5"
Width 21"
Depth 28.75"
Warranty 10 Years with Online Registration
