category:
Gas Furnace
depth:
28 in
height:
33.5 in
manufacturer:
Goodman
mpn:
ACEC800804BX
seer:
0.8
subcategory:
80000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
121
width:
17-1/2 in
Product Description

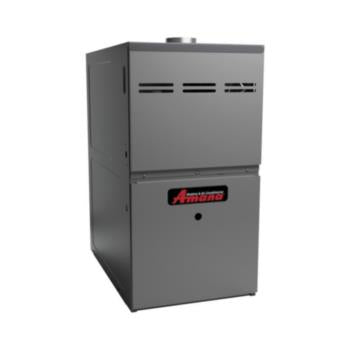

Goodman - ACEC800804BX Amana 80% AFUE ACEC80 Gas Furnace Multi Speed ECM, Two Stage Convertible, Downflow/Horizontal, 80,000 BTUH/H, Low NOx
Specification :
- "Heavy-duty stainless-steel tubular heat exchanger"
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Two-Stage gas valve
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Two-stage gas valve
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- 1. Multi-position installation: Downflow, horizontal left or right
- 2. Convenient left or right connection for gas and electrical service
- 3. Cabinet air leakage (Qleak) less than or equal to 2%
- 4. Fully insulated heat exchanger and blower section
- 5. Bottom or side return air applications
- 6. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberACEC800804BX
Unit Depth28 in
Unit Height33.5 in
Unit Width17-1/2 in
Efficiency0.8
Family DescriptionTwo-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
Min. Circuit12.45 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyACEC80
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight121 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1596 ft‚ ³/min
AFUE80 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity64,000
Blower Motor RPM1200 r/min
NOX Burner TypeLow NOx
