category:
Gas Furnace
depth:
29 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
ACEC960603BN
seer:
0.96
subcategory:
60000 BTU
voltage:
1 Ph
weight:
112
width:
17-1/2 in
Product Description

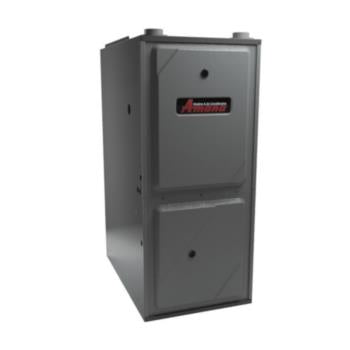

Goodman - ACEC960603BN Amana 96% AFUE ACEC96 Gas Furnace Multi Speed ECM, Two Stage Convertible, Downflow/Horizontal, 60000 BTUH/H, Low NOx
Specification :
- 1. Heavy-duty stainless-steel tubular heat exchanger
- 2. Stainless-steel sloped secondary heat exchanger
- 3. Color-coded low-voltage terminals
- 4. Two-Stage gas valve
- 5. Multi-speed ECM blower motor with continuous fan speed
- 6. All models comply with California 40 ng/J
- 7. Fault code LED Output
- 8. Energy Star
- 9. Two-stage gas valve
- 10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- 1. Multi-position installation: downflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Fully insulated heat exchanger and blower section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable
Additional Information
Manufacturer Part NumberACEC960603BN
Unit Depth29 in
Unit Height34-1/2 in
Unit Width17-1/2 in
Efficiency0.96
Family DescriptionTwo-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
Min. Circuit8.0 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyACEC96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight112 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1330 ft‚ ³/min
AFUE96 %
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity57600
Blower Motor RPM1200 r/min
NOX Burner TypeLow NOx
