category:
Gas Furnace
depth:
28.75 in
height:
34.5 in
manufacturer:
Goodman
mpn:
ACES961005CN
seer:
0.96
subcategory:
100000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
144
width:
21 in
Product Description

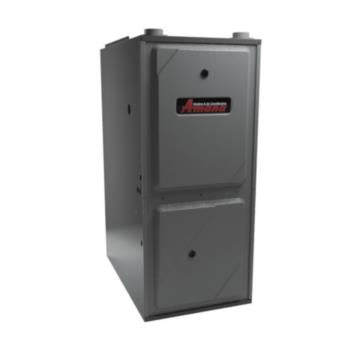

Goodman - ACES961005CN Amana 96% AFUE ACES96 Gas Furnace Multi Speed ECM, Single Stage Convertible, Downflow/Horizontal, 100000 BTUH/H, Low NOx
Specification :
- "Heavy-duty stainless-steel tubular heat exchanger"Stainless-steel sloped secondary heat exchanger"Silicon Nitride igniter"Color-coded low-voltage terminals Multi-speed ECM blower motor with continuous fan speedAll models comply with California 40 ng/J Fault code LED OutputSingle-Stage gas ValveSingle-speed inducer draft blower
Cabinet Features :
- 1. Multi-position installation: downflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gas and electrical service5. Cabinet air leakage (Qleak) less than or equal to 2%6. Fully insulated heat exchanger and blower section7. Bottom or side return air applications8. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberACES961005CN
Unit Depth28.75 in
Unit Height34.5 in
Unit Width21 in
Efficiency0.96
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
Min. Circuit16.9 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyACES96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight144 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1600 ft‚ ³/min
AFUE96 %
High-Fire Input Capacity100000 Btu
High-Fire Output Capacity95000
Blower Motor RPM1200 r/min
NOX Burner TypeLow NOx
