category:
Gas Furnace
depth:
28.75 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
ACVC961205DN
seer:
0.96
subcategory:
120000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
158
width:
24-1/2 in
Product Description

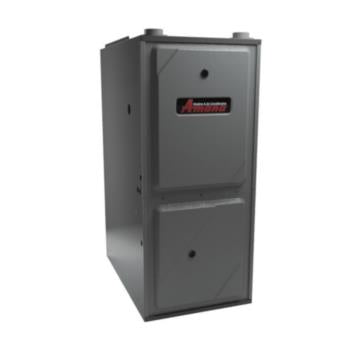

Goodman - ACVC961205DN Amana 96% AFUE ACVC96 Gas Furnace Variable Speed ECM, Two Stage Convertible, Downflow/Horizontal, 120000 BTUH/H, Low NOx ComfortBridge Technology compatible
Specification :
- 1. Heavy-duty stainless-steel tubular heat exchanger
- 2. Efficient and quiet variable-speed Blower
- 3. Integrated communicating ComfortBridge technology
- 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- 5. Stainless-steel sloped secondary heat exchanger
- 6. Dual 7-segment display
- 7. Color-coded low-voltage terminals
- 8. Two-Stage gas valve
- 9. All models comply with California 40 ng/J
- 10. Energy Star
- 11. Two-stage gas valve
- 12. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- 1. Multi-position installation: downflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Fully insulated heat exchanger and blower section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable
Additional Information
Manufacturer Part NumberACVC961205DN
Unit Depth28.75 in
Unit Height34-1/2 in
Unit Width24-1/2 in
Efficiency0.96
Family DescriptionComfortBridge-Compatible Two-Stage, Variable-Speed ECM Gas Furnace Up to 96% AFUE
Min. Circuit14.4 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyACVC96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight158 lb
Motor Speed TypeVariable Speed ECM
Airflow Rate High Heating2130 ft‚ ³/min
AFUE96 %
High-Fire Input Capacity120000 Btu
High-Fire Output Capacity115320
Blower Motor RPM1250 r/min
NOX Burner TypeLow NOx
