category:
Gas Furnace
depth:
28.75 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
ACVM971005CN
seer:
0.97
subcategory:
100000 BTU
type:
97% AFUE
voltage:
1 Ph
weight:
132
width:
21 in
Product Description

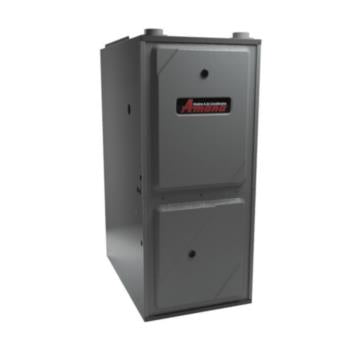

Goodman - ACVM971005CN Amana 97% AFUE ACVM97 Gas Furnace Variable Speed ECM, Modulating, Downflow/Horizontal, 100000 BTUH/H, Low NOx ComfortBridge Technology compatible
Specification :
- 1. Heavy-duty stainless-steel tubular heat exchanger
- 2. Efficient and quiet variable-speed Blower
- 3. Stainless-steel sloped secondary heat exchanger
- 4. Self-calibrating modulating gas valve
- 5. Integrated communicating ComfortBridge technology
- 6. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- 7. Dual 7-segment display
- 8. Color-coded low-voltage terminals
- 9. Modulating gas valve
- 10. All models comply with California 40 ng/J
- 11. Energy Star
- 12. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- 1. Multi-position installation: downflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Fully insulated heat exchanger and blower section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable
Additional Information
Manufacturer Part NumberACVM971005CN
Unit Depth28.75 in
Unit Height34-1/2 in
Unit Width21 in
Efficiency0.97
Family DescriptionComfortBridge-Compatible Modulating Variable-Speed ECM Gas Furnace up to 98% AFUE
Min. Circuit15.4 A
Model Efficiency0.97
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyACVM97
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight132 lb
Motor Speed TypeVariable Speed ECM
Airflow Rate High Heating1800 ft‚ ³/min
AFUE97 %
High-Fire Input Capacity100000 Btu
High-Fire Output Capacity97000
Blower Motor RPM1250 r/min
NOX Burner TypeLow NOx
