category:
Gas Furnace
depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
AM9C960803BN
seer:
0.96
subcategory:
80000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
118
width:
17-1/2 in
Product Description

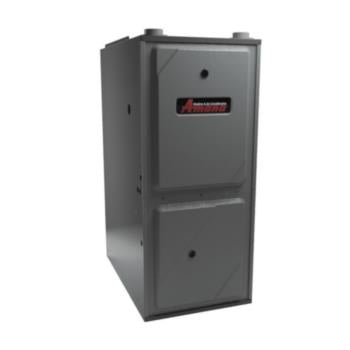

Goodman - AM9C960803BN Amana 96% AFUE AM9C96 Gas Furnace Multi Speed ECM, Two Stage, Upflow/Horizontal, 80000 Btu BTUH/H,
Specification :
- 1. Heavy-duty stainless-steel tubular heat exchanger
- 2. Stainless-steel sloped secondary heat exchanger
- 3. Silicon Nitride igniter
- 4. Dual 7-segment display
- 5. Color-coded low-voltage terminals
- 6. Multi-speed ECM blower motor with continuous fan speed
- 7. Fault code LED Output
- 8. AHRI Certified - ETL Listed
- 9. Energy Star
- 10. Single-Stage gas Valve
- 11. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
- 12. Low constant fan speed circulates air throughout the home
- 13. High static
- 14. All models comply with California Ultra-Low N0x 14 ng/J
Additional Information
Manufacturer Part NumberAM9C960803BN
Unit Depth28 in
Unit Height33-3/8 in
Unit Width17-1/2 in
Efficiency0.96
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
Min. Circuit7.5 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyAM9C96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight118 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1385 ft‚ ³/min
AFUE96 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity76800
