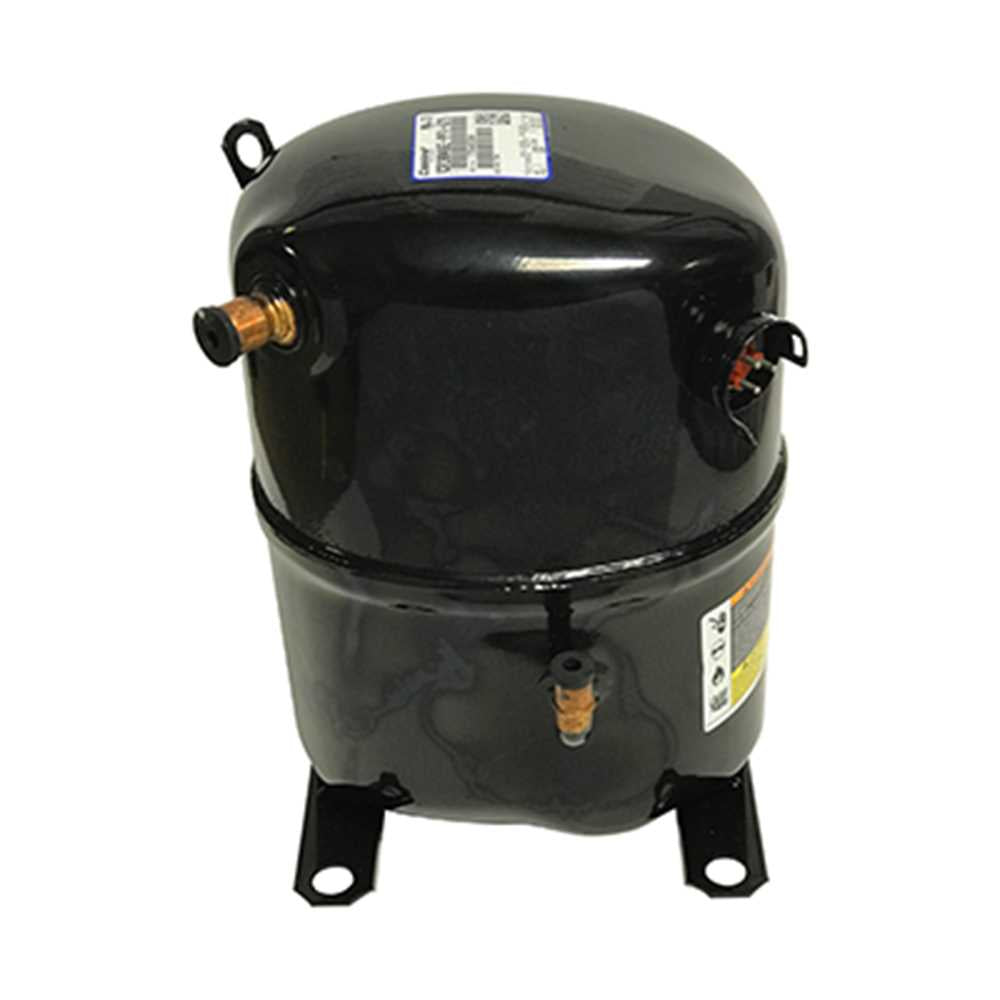

Goodman-Amana CR30K6EPFV875 Compressor, Reciprocating, 30000 BTU/HR, 2.5 Ton, 208/230 V

Copelandâ„¢ Hermetic Compressor, Series: CR, 30000 Btu/hr BTU, 2.5 ton, 3/4 in Stub Suction Line, 1/2 in Stub Discharge Line, 394 - 468 lb/hr, 6.36 cu-ft/min, 208 - 230 VAC, 12.25 A, 2570 W, 2-1/2 hp, R-22, R-407C, HFC Refrigerant, 3500 rev/min Speed, 74 - 79 dBA, 10.55 - 17.8 EER, POE Compressor Oil, 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid, 95 deg F Ambient, 10.23 in L x 9.65 in W x 13.81 in H

• Capacitor run-permanent split capacitor motor type
• Internal inherent protection-one-protector (line break) Use with contactor
• Compressor family Series
• Model variation
• 45 oz initial oil charge, 43 oz oil recharge
• 7.5 in L x 7.5 in W x 14.19 in H mounting
• 16 A-rated load, 82 A locked rotor, 22.4 A minimum circuit
• Two-cylinders
• 1.66 in bore, 0.73 in stroke
• 3.14 cu-in/Rev displacement
• Bill of material-42 in molded plug wiring harness, mounting parts, fitting kit, crank case heater and installation instructions
