category:
Gas Furnace
depth:
28 in
height:
33.5 in
manufacturer:
Goodman
mpn:
AMES800603AX
seer:
0.8
subcategory:
60000 BTU
type:
80% AFUE
voltage:
1 Ph
weight:
90
width:
14 in
Product Description

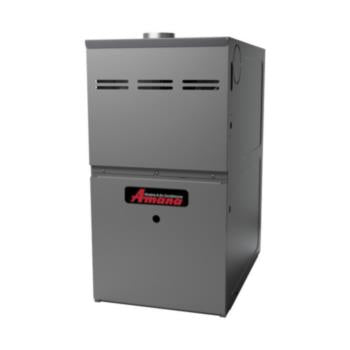

Goodman - AMES800603AX Amana 80% AFUE AMES80 Gas Furnace Multi Speed ECM, Single Stage Convertible, Upflow/Horizontal, 60,000 BTUH/H, Low NOx
Specification :
- Heavy-duty stainless-steel tubular heat exchanger"Silicon Nitride igniter"Color-coded low-voltage terminals Multi-speed ECM blower motor with continuous fan speedFault code LED OutputSingle-Stage gas ValveSingle-speed inducer draft blower
- All models comply with California 40 ng/J
Cabinet Features :
- 1. Multi-position installation: upflow, horizontal left or right2. Convenient left or right connection for gas and electrical service3. Cabinet air leakage (Qleak) less than or equal to 2%4. Foil faced insulated heat exchanger section5. Bottom or side return air applications6. Heavy-gage steel cabinet with durable finis
Additional Information
Manufacturer Part NumberAMES800603AX
Unit Depth28 in
Unit Height33.5 in
Unit Width14 in
Efficiency0.8
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace 80% AFUE
Min. Circuit8.7 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyAMES80
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight90 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1270 ft‚ ³/min
AFUE80 %
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity48,000
Blower Motor RPM1200 r/min
NOX Burner TypeLow NOx
