category:
Gas Furnace
manufacturer:
Goodman
mpn:
AMES920804CN
seer:
0.92
subcategory:
80000 BTU
type:
96% AFUE
voltage:
1 Ph

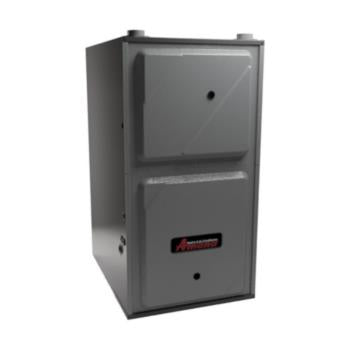

Goodman - AMES920804CN Amana 92% AFUE AMES92 Gas Furnace Multi Speed ECM, Single Stage Convertible, Upflow/Horizontal, 80000 BTUH/H,
Specification :
- "Heavy-duty stainless-steel tubular heat exchanger"
- Stainless-steel sloped secondary heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- All models comply with California 40 ng/J
- Fault code LED Output
- Single-Stage gas Valve
- Single-speed inducer draft blower
Cabinet Features :
- 1. Multi-position installation: upflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Foil faced insulated heat exchanger section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberAMES920804CN
Efficiency0.92
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 92% AFUE
Min. Circuit14.1 A
Model Efficiency0.92
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyAMES92
Prop65 Label RequiredTRUE
Unit TypeIndoor
Motor Speed TypeMulti Speed ECM
AFUE92 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity73680
