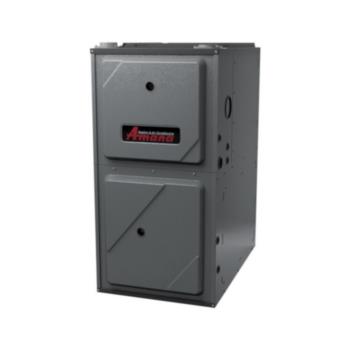

Goodman AMES960803BN Amana 96% AFUE Gas Furnace Multi Speed ECM (80000 Btu)

Product Description

Goodman - AMES960803BN Amana 96% AFUE AMES96 Gas Furnace Multi Speed ECM, Single Stage Convertible, Upflow/Horizontal, 80000 BTUH/H,

Specification :

• 1. Heavy-duty stainless-steel tubular heat exchanger
• 2. Stainless-steel sloped secondary heat exchanger
• 3. Silicon Nitride igniter
• 4. Dual 7-segment display
• 5. Color-coded low-voltage terminals
• 6. Multi-speed ECM blower motor with continuous fan speed
• 7. Fault code LED Output
• 8. AHRI Certified - ETL Listed
• 9. Energy Star
• 10. Single-Stage gas Valve
• 11. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
• 12. Low constant fan speed circulates air throughout the home
• 13. High static
• 14. All models comply with California Ultra-Low N0x 14 ng/J

Cabinet Features :

• 1. Multi-position installation: upflow, horizontal left or right
• 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
• 3. Easy to install top venting with optional side vent
• 4. Convenient left or right connection for gas and electrical service
• 5. Cabinet air leakage (Qleak) less than or equal to 2%
• 6. Fully insulated heat exchanger and blower section
• 7. Bottom or side return air applications
• 8. Heavy-gage steel cabinet with durable finish
