category:
Gas Furnace
depth:
28 in
height:
33.3 in
manufacturer:
Goodman
mpn:
AMVC800803BN
seer:
0.8
subcategory:
80000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
110
width:
17-1/2 in
Product Description

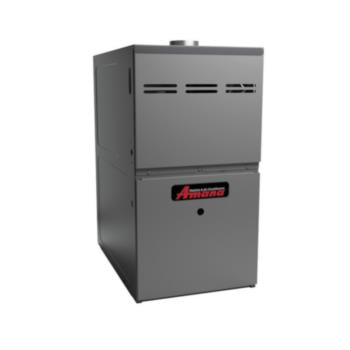

Goodman - AMVC800803BN Amana 80% AFUE AMVC80 Gas Furnace Variable Speed ECM, Two Stage Convertible, Upflow/Horizontal, 80,000 BTUH/H, ComfortBridge Technology compatible
Specification :
- 1. Heavy-duty stainless-steel tubular heat exchanger
- 2. Efficient and quiet variable-speed Blower
- 3. Integrated communicating ComfortBridge technology
- 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- 5. Two-Stage gas valve
Cabinet Features :
- * Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
- * Multi-position installation:AMVC80: upflow, horizontal left or rightACVC80: downflow, horizontal left or right
- * Removable bottom for side- or bottom-return applications
- * Convenient left or right connection for gas/electric service
- * Cabinet air leakage ¢° ¤ 2%
- * Coil and furnace fit flush for most installations
Additional Information
Manufacturer Part NumberAMVC800803BN
Unit Depth28 in
Unit Height33.3 in
Unit Width17-1/2 in
Efficiency0.8
Family DescriptionComfortBridge-Compatible Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
Min. Circuit7.75 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyAMVC80
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight110 lb
Motor Speed TypeVariable Speed ECM
Airflow Rate High Heating1400 ft‚ ³/min
AFUE80 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity64,000
Blower Motor RPM1200 r/min
