category:
Gas Furnace
depth:
28.75 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
AMVM971205DN
seer:
0.97
subcategory:
120000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
168
width:
24-1/2 in
Product Description

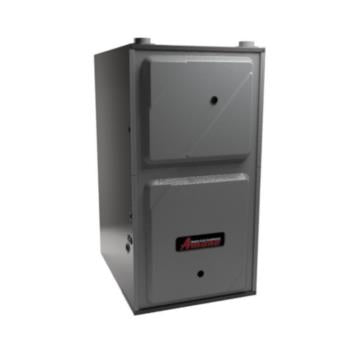

Goodman - AMVM971205DN Amana 97% AFUE AMVM97 Gas Furnace Variable Speed ECM, Modulating, Upflow/Horizontal, 120000 BTUH/H, Low NOx ComfortBridge Technology compatible
Specification :
- 1. Heavy-duty stainless-steel tubular heat exchanger
- 2. Efficient and quiet variable-speed Blower
- 3. Stainless-steel sloped secondary heat exchanger
- 4. Self-calibrating modulating gas valve
- 5. Integrated communicating ComfortBridge technology
- 6. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- 7. Dual 7-segment display
- 8. Color-coded low-voltage terminals
- 9. Modulating gas valve
- 10. All models comply with California 40 ng/J
- 11. Energy Star
- 12. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- 1. Multi-position installation: upflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Fully insulated heat exchanger and blower section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberAMVM971205DN
Unit Depth28.75 in
Unit Height34-1/2 in
Unit Width24-1/2 in
Efficiency0.97
Family DescriptionComfortBridge-Compatible Modulating Variable-Speed ECM Gas Furnace up to 98% AFUE
Min. Circuit15.4 A
Model Efficiency0.97
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyAMVM97
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight168 lb
Motor Speed TypeVariable Speed ECM
Airflow Rate High Heating2155 ft‚ ³/min
AFUE97 %
High-Fire Input Capacity120000 Btu
High-Fire Output Capacity116400
Blower Motor RPM1250 r/min
NOX Burner TypeLow NOx
