category:
Light Commercial Air Conditioner Condensor
depth:
26-1/4 in
height:
32-1/2 in
manufacturer:
Goodman
mpn:
ANX140241
seer:
14 SEER
subcategory:
2 Ton
type:
24000 BTU
voltage:
1 Ph
weight:
131
width:
26-1/4 in

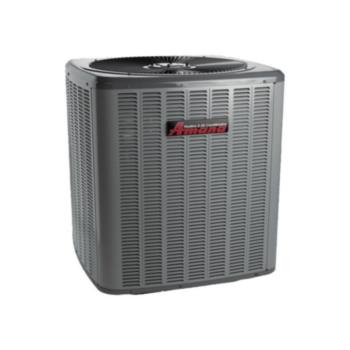

Goodman - ANX140241 Amana ANX14 Split Air Conditioner 14 SEER, Single Stage, 2 Ton,
Specification :
- 1. Energy-efficient compressor
- 2. Single-speed PSC condenser fan motor
- 3. Factory-installed filter drier
- 4. Fully charged for fifteen feet of tubing length
- 5. Contactor with lug connection
- 6. AHRI Certified - ETL Listed
- 7. Ground lug connection
- 8. Copper tube enhanced aluminum fin coil
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Baked-on powder-paint finish with 500-hour salt-spray approval
- 5. Single-panel access to controls with space for field-installed accessories
- 6. Service port and controls are accessible while unit is operating
- 7. Compact footprint
- 8. Rust-resistant screws
- 9. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberANX140241
Compressor StagesSingle Stage
Compressor TypeRotary
Unit Depth26-1/4 in
Unit Height32-1/2 in
Unit Width26-1/4 in
Efficiency14 SEER
Family DescriptionEnergy-Efficient Split System Air Conditioner Up to 15 SEER 12.5 EER
Max. Voltage253 V
Min. Circuit10.3 A
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyANX14
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight131 lb
Motor Speed TypeSingle Speed
