capacity:
46500 Btu
category:
Packaged Gas-Electric-Dual
depth:
51 in
height:
42-1/2 in
manufacturer:
Goodman
mpn:
APG1448100M41
seer:
14 SEER
subcategory:
3.5 Ton
type:
100000 BTU
voltage:
1 Ph
weight:
538
width:
47 in
Product Description

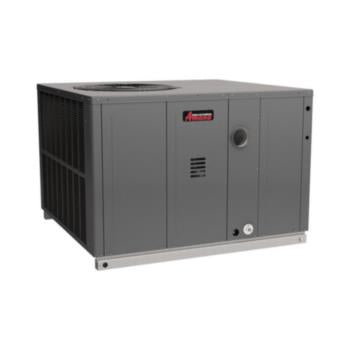

Goodman - APG1448100M41 Amana APG14M Downflow/Horizontal Packaged Gas/Electric/Dual 14 SEER, Single Stage Cooling, Multi Speed ECM, 4 Ton
Specification :
- Heavy-duty stainless-steel heat exchanger
- Energy-efficient compressor
- All-aluminum evaporator coil
- Aluminum tube/aluminum fin coil
- Multi-speed ECM indoor blower motor
- Flowrater expansion device on 2- to 4-ton units
- TXV expansion device on 5-ton units
- Redundant gas valve with easy conversion to propane
- Power-assisted combustion
- Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
- All models comply with California Low NOx standards
Cabinet Features :
- * High-quality UV-resistant powder-paint finish
- * Aluminum foil-facing internal insulation
- * Horizontal or downflow application
- * Convenient access panels
- * One roof curb fits all units
- * Fully insulated cabinet
- * Bottom, 2¢â‚¬ high base rails for easier handling
- * When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Achor bracket kits available.)
- * One footprint for all tonnages
Additional Information
Manufacturer Part NumberAPG1448100M41
Compressor StagesSingle Stage
Compressor TypeScroll
Cooling Capacity Rated46500 Btu/H
Unit Depth51 in
Unit Height42-1/2 in
Unit Width47 in
Efficiency14 SEER
Family DescriptionPackaged Gas/Electric 14 SEER / 81% AFUE
Max. Voltage253 V
Min. Circuit30.5 A
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAPG14_M
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage4 tons
Unit TypeOutdoor
Unit Weight538 lb
Airflow Rate High Cooling1525 ft‚ ³/min
Indoor Blower FLA5.4 A
Motor Speed TypeSingle Speed EEM
Heating Capacity Rated100000 Btu/H
AFUE0.81 %
High-Fire Input Capacity100000 Btu
High-Fire Output Capacity80000 Btu/h
