category:
Packaged Heat Pump
depth:
34 in
height:
35 in
manufacturer:
Goodman
mpn:
APH1436H41
seer:
14 SEER
subcategory:
3 Ton
type:
36000 BTU
voltage:
1 Ph
weight:
375
width:
66-1/2 in
Product Description

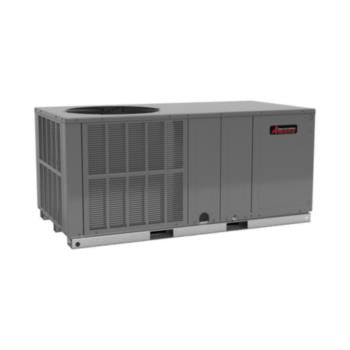

Goodman - APH1436H41 Amana APH14M Horizontal Packaged Heat Pump 14 SEER, Single Stage Cooling, Multi Speed ECM, 3 Ton
Specification :
- Energy-efficient compressor with internal relief valve
- Multi-speed ECM indoor blower motor
- Quiet horizontal discharge
- All-Aluminum evaporator coil
- Copper tube/aluminum fin coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Electric heat kit available as a field-installed option
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Heavy-gauge galvanized-steel cabinet
- * Attractive Architectural Gray powder-paint finish
- * Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- * Cabinet air leakage less than 2.0% at 1.0 inch H¢ššO when tested in accordance with ASHRAE standard 193
- * Cabinet air leakage less than 1.4% at 0.5 inch H¢ššO when tested in accordance with ASHRAE standard 193
- * Fully insulated blower compartment with convenient access panels
- * Louvered condenser coil protection
- * One footprint for all tonnages
Additional Information
Manufacturer Part NumberAPH1436H41
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth34 in
Unit Height35 in
Unit Width66-1/2 in
Efficiency14 SEER
Family DescriptionPackaged Heat Pumps Up to 16 SEER / 2 to 5 Tons Up to 14 SEER 2 to 5 Tons
Max. Voltage253 V
Min. Circuit26 A
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAPH14_H
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3 tons
Unit TypeOutdoor
Unit Weight375 lb
Motor Speed TypeMulti Speed ECM
