category:
Packaged Heat Pump
depth:
51-1/2 in
height:
35 in
manufacturer:
Goodman
mpn:
APH1436M41
seer:
14 SEER
subcategory:
3 Ton
type:
36000 BTU
voltage:
1 Ph
width:
47-1/2 in
Product Description

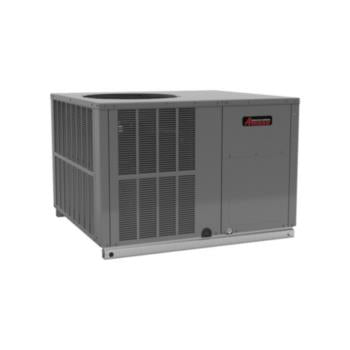

Goodman - APH1436M41 Amana APH14M Downflow/Horizontal Packaged Heat Pump 14 SEER, Single Stage Cooling, Multi Speed ECM, 3 Ton
Specification :
- Energy-efficient compressor with internal relief valve
- Two-stage cooling on 5-ton units
- Multi-speed ECM indoor blower motor
- All-Aluminum evaporator coil
- Copper tube/ aluminum fin condenser coils
- Liquid-line filter drier
- Convertible airflow: horizontal or downflow
- Totally enclosed, permanently lubricated condenser fan motor
- Electric heat kit available as a field-installed option
- AHRI certified
- ETL listed
Cabinet Features :
- * Heavy-gauge galvanized-steel cabinet with attractive two-tone Architectural Gray powder-paint finish
- * Fully insulated air-handling compartment with convenient access panels
- * Compressor sound blanket
- * Louvered condenser coil protection
- * One footprint two heights
Additional Information
Manufacturer Part NumberAPH1436M41
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth51-1/2 in
Unit Height35 in
Unit Width47-1/2 in
Efficiency14 SEER
Family DescriptionPackaged Heat Pump 14 SEER / 8.0 HSPF 2 to 5 Tons
Max. Voltage253 V
Min. Circuit26.6 A
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAPH14_M
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3 tons
Unit TypeOutdoor
Motor Speed TypeMulti Speed ECM
