category:
Packaged Heat Pump
depth:
51-1/2 in
height:
35 in
manufacturer:
Goodman
mpn:
APH1630M41
seer:
16 SEER
subcategory:
2.5 Ton
type:
30000 BTU
voltage:
1 Ph
width:
47-1/2 in
Product Description

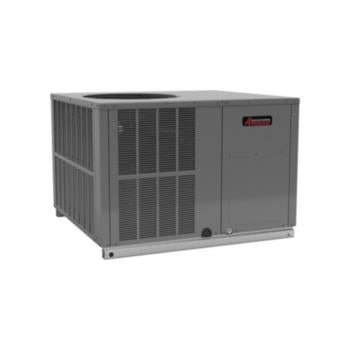

Goodman - APH1630M41 Amana APH16M Downflow/Horizontal Packaged Heat Pump 16 SEER, Two Stage Cooling, Multi Speed ECM, 2.5 Ton
Specification :
- Energy-efficient compressor with internal relief valve
- Two-stage heating and cooling
- Multi-Speed ECM indoor blower motor
- Liquid-line filter drier
- Convertible airflow: horizontal or downflow
- Copper tube/aluminum fin condenser coils
- All-aluminum evaporator coil on 2- to 4-ton units
- Aluminum-copper evaporator coil on 5-ton units
- Totally enclosed, permanently lubricated condenser fan motor
- Electric heat kit available as a field-installed option
Cabinet Features :
- * Heavy-gauge galvanized-steel cabinet with attractive two-tone architectural Gray powder-paint finish
- * Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- * Fully insulated air-handling compartment with convenient access panels
- * Louvered condenser coil protection
Additional Information
Manufacturer Part NumberAPH1630M41
Compressor StagesTwo Stage
Compressor TypeScroll
Unit Depth51-1/2 in
Unit Height35 in
Unit Width47-1/2 in
Efficiency16 SEER
Family DescriptionEnergy-Efficient Packaged Heat Pump Up to 16 SEER 8.2 HSPF 2 to 5 Tons
Max. Voltage253 V
Min. Circuit22.2 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAPH16_M
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2.5 tons
Unit TypeOutdoor
Motor Speed TypeMulti Speed ECM
