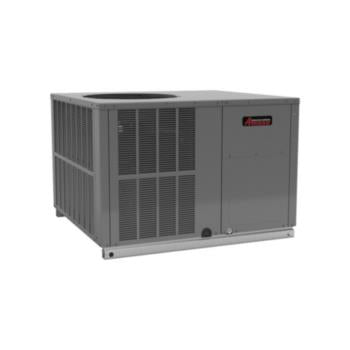

Goodman APH1636M41 Amana Packaged Heat Pump (3 tons)

Out of stock

Get it by Sat, Jun 14 - Thu, Jun 19

SKU SKU:kpi027-APH1636M41

(0 rating)

$7,208.57 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

30-day returns
Fast shipping
Secure payments
Over 300,000 products

category: Packaged Heat Pump

depth: 51-1/2 in

height: 35 in

manufacturer: Goodman

mpn: APH1636M41

seer: 16 SEER

subcategory: 3 Ton

type: 36000 BTU

voltage: 1 Ph

width: 47-1/2 in

Product Description

Goodman - APH1636M41 Amana APH16M Downflow/Horizontal Packaged Heat Pump 16 SEER, Two Stage Cooling, Multi Speed ECM, 3 Ton

Specification :

Energy-efficient compressor with internal relief valve
Two-stage heating and cooling
Multi-Speed ECM indoor blower motor
Liquid-line filter drier
Convertible airflow: horizontal or downflow
Copper tube/aluminum fin condenser coils
All-aluminum evaporator coil on 2- to 4-ton units
Aluminum-copper evaporator coil on 5-ton units
Totally enclosed, permanently lubricated condenser fan motor
Electric heat kit available as a field-installed option

Cabinet Features :

* Heavy-gauge galvanized-steel cabinet with attractive two-tone architectural Gray powder-paint finish
* Aluminum foil-facing internal insulation reinforced with fiberglass scrim
* Fully insulated air-handling compartment with convenient access panels
* Louvered condenser coil protection

Additional Information

Manufacturer Part NumberAPH1636M41

Compressor StagesTwo Stage

Compressor TypeScroll

Unit Depth51-1/2 in

Unit Height35 in

Unit Width47-1/2 in

Efficiency16 SEER

Family DescriptionEnergy-Efficient Packaged Heat Pump Up to 16 SEER 8.2 HSPF 2 to 5 Tons

Max. Voltage253 V

Min. Circuit25.1 A

Min. Voltage197 V

Model Efficiency16 SEER

Power Frequency60 Hz

Power Phase1 Ph

Power Voltage208/230 V

FamilyAPH16_M

Prop65 Label RequiredTRUE

RefrigerantR-410A

Tonnage3 tons

Unit TypeOutdoor

Motor Speed TypeMulti Speed ECM
