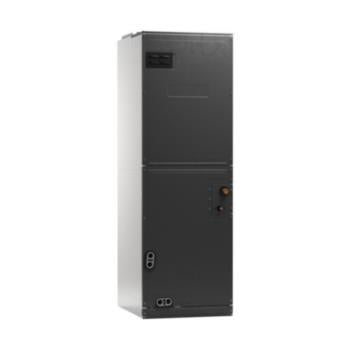

Goodman ARUF486016 Goodman ARUF Air Handler (4 tons)

Product Description

Goodman - ARUF486016 ARUF Ducted Multi-position Air Handler, PSC Motor, 4-5 Ton, 22 in Cabinet with Orifice Expansion

Specification :

• 1. Check flowrator for cooling and heat pump applications
• 2. Direct drive, multi-speed PSC blower motor
• 3. All-aluminum evaporator coil
• 4. Coil mounting track for quick repositioning
• 5. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• 5. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• 6. 3 kW ¢â‚¬œ 25 kW electric heater kits
• 7. Horizontal or vertical configuration capabilities
• 8. AHRI certified
• 9. ETL listed

Cabinet Features :

• 1. Rigid SmartFrame cabinet
• 2. 21" depth for easier attic access
• 3. DecaBDE-free thermoplastic drain pan with secondary drain connections
• 4. Screw-less sides and back helps to reduce condensation when installed in humid locations
• 5. Foil-faced insulation covers the internal casing to reduce cabinet condensation
• 6. Galvanized, leather grain-embossed finish
• 7. Glue-less cabinet insulation retention
• 8. Tool-less filter access
