depth:
21 in
height:
53-1/2 in
manufacturer:
Goodman
mpn:
ARUF49D14
voltage:
1 Ph
weight:
145
width:
24-1/2 in
Product Description

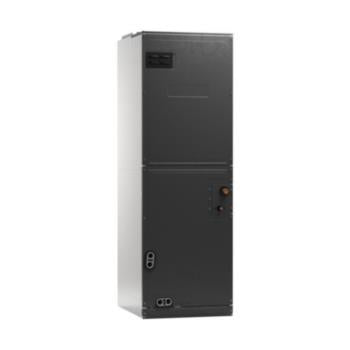

Goodman - ARUF49D14 ARUF Ducted Multi-position Air Handler, PSC Motor, 1.5-5 Ton, 24-1/2 in Cabinet with Orifice Expansion
Specification :
- 1. Check flowrator for cooling and heat pump applications
- 2. Direct drive, multi-speed PSC blower motor
- 3. All-aluminum evaporator coil
- 4. Coil mounting track for quick repositioning
- 5. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- 5. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 6. 5 kW ¢â‚¬œ 20 kW electric heater kits
- 7. Horizontal or vertical configuration capabilities
- 8. AHRI certified
- 9. ETL listed
Additional Information
- 1. Rigid SmartFrame cabinet
- 2. 21" depth for easier attic access
- 3. DecaBDE-free thermoplastic drain pan with secondary drain connections
- 4. Screw-less sides and back helps to reduce condensation when installed in humid locations
- 5. Foil-faced insulation covers the internal casing to reduce cabinet condensation
- 6. Galvanized, leather grain-embossed finish
- 7. Glue-less cabinet insulation retention
- 8. Tool-less filter access
Unit Depth21 in
Unit Height53-1/2 in
Unit Width24-1/2 in
Family DescriptionMulti-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1‚ ½ to 5 Tons
Max. Voltage253 V
Min. Circuit4.4/4.4 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyARUF
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage4 tons
Unit TypeIndoor
Unit Weight145 lb
