depth:
21 in
height:
49 in
manufacturer:
Goodman
mpn:
ASPT33C14
voltage:
1 Ph
weight:
118
width:
21 in
Product Description

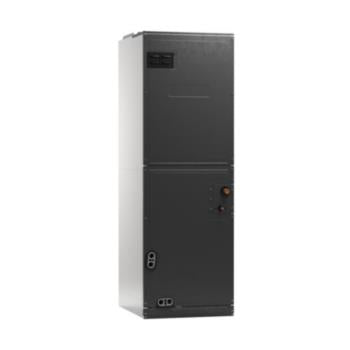

Goodman - ASPT33C14 ASPT Ducted Multi-position Air Handler, Fixed Speed ECM Motor, 1.5-5 Ton, 21 in Cabinet with TXV Expansion,
Specification :
- 1. Internal factory-installed thermal expansion valves for cooling and heat pump applications
- 2. Direct drive, multi-speed ECM blower motor
- 3. All-aluminum evaporator coil
- 4. Coil mounting track for quick repositioning
- 5. Optimized for use with R-410A refrigerant
- 6. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- 7. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 8. 5 kW ¢â‚¬œ 15 kW electric heater kits
- 9. AHRI certified
- 10. ETL listed
Additional Information
- 1. Rigid SmartFrame cabinet
- 2. Horizontal or vertical configuration capabilities
- 3. 21¢â‚¬ depth for easier attic access
- 4. DecaBDE-free thermoplastic drain pan with secondary drain connections
- 5. Screw-less sides and back helps to reduce condensation when installed in humid locations
- 6. Foil-faced insulation covers the internal casing to reduce cabinet condensation
- 7. Galvanized, leather grain-embossed finish
- 8. Glue-less cabinet insulation retention
- 9. Tool-less filter access
Unit Depth21 in
Unit Height49 in
Unit Width21 in
Family DescriptionMulti-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1‚ ½ to 5 Tons
Max. Voltage253 V
Min. Circuit4.9/4.9 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/240 V
FamilyASPT
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeIndoor
Unit Weight118 lb
