category:
Light Commercial Air Conditioner Condensor
depth:
26 in
height:
27-1/2 in
manufacturer:
Goodman
mpn:
ASX130241
seer:
13 SEER
subcategory:
2 Ton
type:
24000 BTU
voltage:
1 Ph
weight:
115
width:
26 in
Product Description

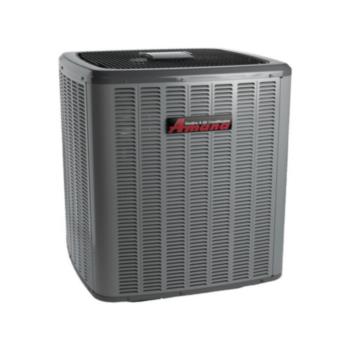

Goodman - ASX130241 Amana ASX13 Split Air Conditioner 13 SEER, Single Stage, 2 Ton,
Specification :
- 1. Energy-efficient compressor
- 2. Single-speed PSC condenser fan motor
- 3. Factory-installed filter drier
- 4. Factory-installed high and low-pressure switches
- 5. High-density foam compressor sound blanket
- 6. Fully charged for fifteen feet of tubing length
- 7. Contactor with lug connection
- 8. AHRI Certified - ETL Listed
- 9. Ground lug connection
- 10. Copper tube enhanced aluminum fin coil
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Wire fan discharge grille
- 5. Baked-on powder-paint finish with 500-hour salt-spray approval
- 6. Single-panel access to controls with space for field-installed accessories
- 7. Service port and controls are accessible while unit is operating
- 8. Compact footprint
- 9. Rust-resistant screws
- 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberASX130241
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth26 in
Unit Height27-1/2 in
Unit Width26 in
Efficiency13 SEER
Family DescriptionEnergy-Efficient Split System Air Conditioner Up to 14 SEER 12 EER
Max. Voltage253 V
Min. Circuit17.6 A
Min. Voltage197 V
Model Efficiency13 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyASX13
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight115 lb
Motor Speed TypeSingle Speed
