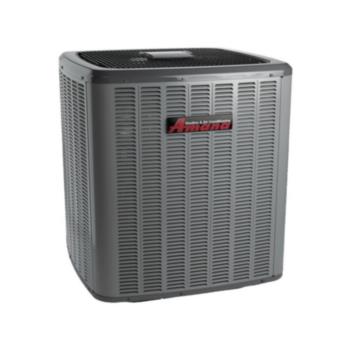

Goodman ASX160311 Amana Split Air Conditioner (2.5 tons)

Goodman ASX160311 Amana Split Air Conditioner (2.5 tons)

Dropship

SKU SKU:kpi027-ASX160311

Regular price $2,428.57 USD
Regular price Sale price $2,428.57 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Light Commercial Air Conditioner Condensor
depth: 29-1/4 in
height: 40 in
manufacturer: Goodman
mpn: ASX160311
seer: 16 SEER
subcategory: 2.5 Ton
type: 30000 BTU
voltage: 1 Ph
weight: 161
width: 29-1/4 in

Goodman - ASX160311 Amana ASX16 Split Air Conditioner 16 SEER, Single Stage, 2.5 Ton,

Specification :

  • 1. High-efficiency compressor
  • 2. Single-speed PSC condenser fan motor
  • 3. Factory-installed filter drier
  • 4. Factory-installed high and low-pressure switches
  • 5. High-density foam compressor sound blanket
  • 6. Fully charged for fifteen feet of tubing length
  • 7. Contactor with lug connection
  • 8. AHRI Certified - ETL Listed
  • 9. Ground lug connection
  • 10. Copper tube enhanced aluminum fin coil

Cabinet Features :

  • 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
  • 2. Service valves with sweat connections and easy-access gauge ports
  • 3. Engineered sound control top design
  • 4. Wire fan discharge grille
  • 5. Baked-on powder-paint finish with 500-hour salt-spray approval
  • 6. Single-panel access to controls with space for field-installed accessories
  • 7. Service port and controls are accessible while unit is operating
  • 8. Compact footprint
  • 9. Rust-resistant screws
  • 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Additional Information

Manufacturer Part NumberASX160311
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth29-1/4 in
Unit Height40 in
Unit Width29-1/4 in
Efficiency16 SEER
Family DescriptionHigh-Efficiency Split System Air Conditioner Up to 16 SEER 13 EER
Max. Voltage253 V
Min. Circuit17.1 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyASX16
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2.5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight161 lb
Motor Speed TypeSingle Speed
