capacity:
56000 Btu
category:
Light Commercial Air Conditioner Condensor
depth:
35-3/4 in
height:
42-1/4 in
manufacturer:
Goodman
mpn:
ASXC160601
seer:
16 SEER
subcategory:
5 Ton
type:
60000 BTU
voltage:
1 Ph
weight:
326
width:
35-3/4 in
Product Description

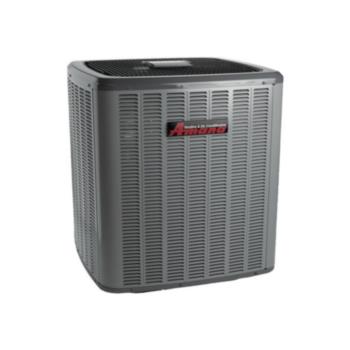

Goodman - ASXC160601 Amana ASXC16 Split Air Conditioner 16 SEER, Two Stage, 5 Ton,
Specification :
- 1. High-efficiency two-stage scroll compressor
- 2. Two-speed PSC condenser fan motor
- 3. ComfortBridge Communications System compatible
- 4. Factory-installed filter drier
- 5. Factory-installed high and low-pressure switches
- 6. High-density foam compressor sound blanket
- 7. Copeland‚ ® ComfortAlert built in diagnostics
- 8. Fully charged for fifteen feet of tubing length
- 9. Factory-installed sensors monitoring coil and ambient temperature
- 10. Contactor with lug connection
- 11. In communicating mode, only two low voltage wires to the outdoor unit are required
- 12. AHRI Certified - ETL Listed
- 13. Ground lug connection
- 14. Color-coded terminal strip for non-communicating set-up
- 15. Copper tube enhanced aluminum fin coil
- 16. Customized control algorithms
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Wire fan discharge grille
- 5. Baked-on powder-paint finish with 500-hour salt-spray approval
- 6. Single-panel access to controls with space for field-installed accessories
- 7. Service port and controls are accessible while unit is operating
- 8. Compact footprint
- 9. Rust-resistant screws
- 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberASXC160601
Compressor StagesTwo Stage
Compressor TypeScroll
Cooling Capacity Rated56000 Btu/H
Unit Depth35-3/4 in
Unit Height42-1/4 in
Unit Width35-3/4 in
Efficiency16 SEER
Family DescriptionHigh-Efficiency Split-System Two-Stage Air Conditioner Up to 16 SEER 13 EER
Max. Voltage253 V
Min. Circuit31.4 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyASXC16
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight326 lb
Airflow Rate High Cooling1480 ft‚ ³/min
Motor Speed TypeMulti Speed ECM
