depth:
29-1/4 in
height:
37 in
manufacturer:
Goodman
mpn:
ASZ140181
seer:
14 SEER
voltage:
1 Ph
weight:
143
width:
29-1/4 in

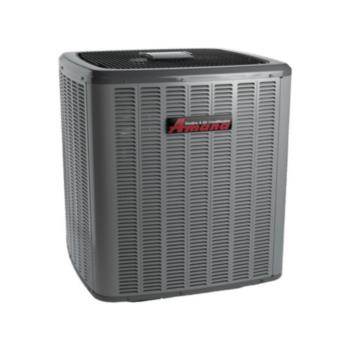

Goodman - ASZ140181 Amana ASZ14 Split Heat Pump 14 SEER HSPF, Single Stage, 1.5 Ton,
Specification :
- 1. High-efficiency compressor
- 2. Single-speed PSC condenser fan motor
- 3. Factory-installed filter drier
- 4. Factory-installed suction line accumulator
- 5. Factory-installed compressor crankcase heater
- 6. Factory-installed high-capacity muffler
- 7. Factory-installed high and low-pressure switches
- 8. High-density foam compressor sound blanket
- 9. SmartShift‚ ® technology with short-cycle protection to ensure quiet, reliable defrost
- 10. Contactor with lug connection
- 11. Fully charged for fifteen feet of tubing length
- 12. AHRI Certified-ETL Listed
- 13. Copper tube enhanced aluminum fin coil.
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Wire fan discharge grille
- 5. Baked-on powder-paint finish with 500-hour salt-spray approval
- 6. Single-panel access to controls with space for field-installed accessories
- 7. Service port and controls are accessible while unit is operating
- 8. Compact footprint
- 9. Rust-resistant screws
- 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberASZ140181
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth29-1/4 in
Unit Height37 in
Unit Width29-1/4 in
Efficiency14 SEER
Family DescriptionEnergy-Efficient Split System Heat Pump Up to 15 SEER 9.0 HSPF
Max. Voltage253 V
Min. Circuit12.2 A
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyASZ14
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage1.5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight143 lb
