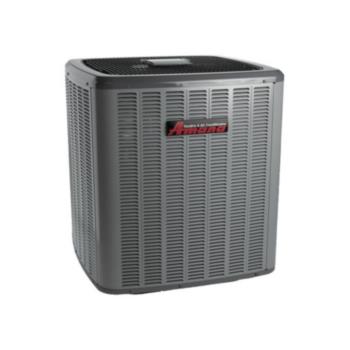

Goodman ASZ160241 Amana Split Heat Pump (2 tons)

Goodman ASZ160241 Amana Split Heat Pump (2 tons)

Dropship

SKU SKU:kpi027-ASZ160241

Regular price $2,992.86 USD
Regular price Sale price $2,992.86 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
depth: 35-3/4 in
height: 37 in
manufacturer: Goodman
mpn: ASZ160241
seer: 16 SEER
voltage: 1 Ph
weight: 180
width: 35-3/4 in

Goodman - ASZ160241 Amana ASZ16 Split Heat Pump 16 SEER HSPF, Single Stage, 2 Ton,

Specification :

  • 1. High-efficiency compressor
  • 2. Single-speed PSC condenser fan motor
  • 3. Factory-installed filter drier
  • 4. Factory-installed suction line accumulator
  • 5. Factory-installed compressor crankcase heater
  • 6. Factory-installed high-capacity muffler
  • 7. Factory-installed high and low-pressure switches
  • 8. High-density foam compressor sound blanket
  • 9. SmartShift‚ ® technology with short-cycle protection to ensure quiet, reliable defrost
  • 10. Contactor with lug connection
  • 11. Fully charged for fifteen feet of tubing length
  • 12. AHRI Certified-ETL Listed
  • 13. Copper tube enhanced aluminum fin coil.

Cabinet Features :

  • 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
  • 2. Service valves with sweat connections and easy-access gauge ports
  • 3. Engineered sound control top design
  • 4. Wire fan discharge grille
  • 5. Baked-on powder-paint finish with 500-hour salt-spray approval
  • 6. Single-panel access to controls with space for field-installed accessories
  • 7. Service port and controls are accessible while unit is operating
  • 8. Compact footprint
  • 9. Rust-resistant screws
  • 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Additional Information

Manufacturer Part NumberASZ160241
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth35-3/4 in
Unit Height37 in
Unit Width35-3/4 in
Efficiency16 SEER
Family DescriptionHigh-Efficiency Split System Heat Pump Up to 16 SEER 9.0 HSPF
Max. Voltage253 V
Min. Circuit14.7 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyASZ16
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight180 lb
