depth:
21 in
height:
53-1/2 in
manufacturer:
Goodman
mpn:
AVPEC37C14
voltage:
1 Ph
weight:
150
width:
21 in
Product Description

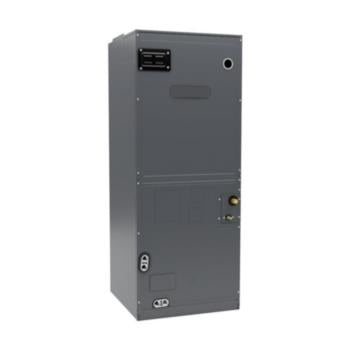

Goodman - AVPEC37C14 AVPEC Ducted Multi-position Air Handler, Variable Speed ECM Motor, 2-5 Ton, 21 in Cabinet with EEV Expansion, ComfortBridge Technology compatible
Specification :
- 1. Electronic Expansion Valve (EEV) for cooling and heat pump applications.
- 2. Variable-speed ECM blower motor
- 3. Suitable for operation with inverter-driven products
- 4. ComfortNet Communicating System compatible
- 5. Provides constant CFM over a wide range of static pressure conditions independent of duct system
- 6. CFM indicator
- 7. Provides adjustable low CFM for efficient fan-only operation
- 8. All-aluminum evaporator coil
- 9. Fault recall of six most recent faults
- 10. Improved humidity and comfort control
- 11. 5 kW ¢â‚¬œ 10 kW electric heater kits
Additional Information
- 1. Rigid SmartFrame cabinet
- 2. Cabinet air leakage less than 2.0% at 1.0 inch H¢ššO when tested in accordance with ASHRAE standard 193
- 3. Cabinet air leakage less than 1.4% at 0.5 inch H¢ššO when tested in accordance with ASHRAE standard 193
- 4. Horizontal or vertical configuration capabilities
- 5. 21" depth for easier attic access
- 6. DecaBDE-free thermoplastic drain pan with secondary drain connections
- 7. Screw-less sides and back helps to reduce condensation when installed in humid locations
- 8. Foil-faced insulation covers the internal casing to reduce cabinet condensation
- 9. Galvanized, leather grain-embossed finish
- 10 .Glue-less cabinet insulation retention
Unit Depth21 in
Unit Height53-1/2 in
Unit Width21 in
Family DescriptionMulti-Position, Variable-Speed ECM-Based Air Handler with Internal EEV, ComfortBridge and Inverter Compatible 2 to 5 Tons
Max. Voltage253 V
Min. Circuit6.5/6.5 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAVPEC
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3.5 tons
Unit TypeIndoor
Unit Weight150 lb
