depth:
21 in
height:
53-1/2 in
manufacturer:
Goodman
mpn:
AVPTC37C14
voltage:
1 Ph
weight:
144
width:
21 in
Product Description

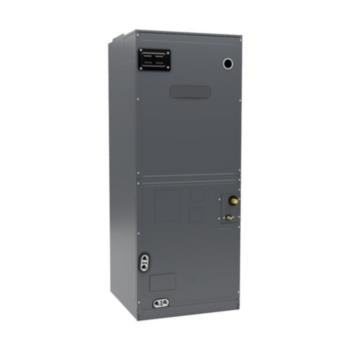

Goodman - AVPTC37C14 AVPTC Ducted Multi-position Air Handler, Variable Speed ECM Motor, 1.5-5 Ton, 21 in Cabinet with TXV Expansion, ComfortBridge Technology compatible
Specification :
- 1. Internal factory-installed thermal expansion valves for cooling and heat pump applications
- 2. Variable-speed ECM blower motor
- 3. Integrated communicating ComfortBridge Technology
- 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- 5. Auto configuration of the airflow and tonnage in communicating mode
- 6. Provides constant CFM over a wide range of static pressure conditions independent of duct system
- 7. CFM indicator
- 8. Fault recall of six most recent faults
- 9. Provides adjustable low CFM for efficient fan-only operation
- 10. Improved humidity and comfort control
- 11. Built-in compatibility with multi-stage heat pump and cooling applications
Additional Information
- 1. Rigid SmartFrame cabinet
- 2. Cabinet air leakage less than 2.0% at 1.0 inch H¢ššO when tested in accordance with ASHRAE standard 193
- 3. Cabinet air leakage less than 1.4% at 0.5 inch H¢ššO when tested in accordance with ASHRAE standard 193
- 4. Horizontal or vertical configuration capabilities
- 5. 21" depth for easier attic access
- 6. DecaBDE-free thermoplastic drain pan with secondary drain connections
- 7. Screw-less sides and back helps to reduce condensation when installed in humid locations
- 8. Foil-faced insulation covers the internal casing to reduce cabinet condensation
- 9. Galvanized, leather grain-embossed finish
- 10 .Glue-less cabinet insulation retention
Unit Depth21 in
Unit Height53-1/2 in
Unit Width21 in
Family DescriptionMulti-Position, Variable-Speed, ECM-Based Air Handler with Internal TXV ComfortBridge Compatible 1‚ ½ to 5 Tons
Max. Voltage253 V
Min. Circuit6.5/6.5 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/240 V
FamilyAVPTC
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3.5 tons
Unit TypeIndoor
Unit Weight144 lb
