capacity:
23000 Btu
category:
Light Commercial Air Conditioner Condensor
depth:
35-1/2 in
height:
38-1/4 in
manufacturer:
Goodman
mpn:
AVXC200241
seer:
20 SEER
subcategory:
2 Ton
type:
24000 BTU
voltage:
1 Ph
weight:
210
width:
35-1/2 in
Product Description

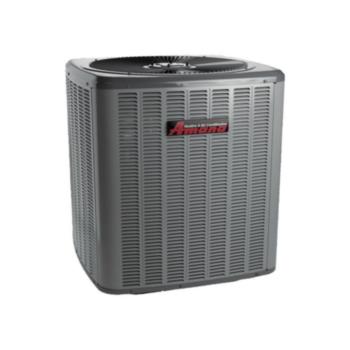

Goodman - AVXC200241 Amana AVXC20 Split Air Conditioner 20 SEER, Inverter, 2 Ton,
Specification :
- 1. Variable-speed swing and scroll compressors
- 2. Integrated communicating ComfortBridge(TM) Technology
- 3. Commissioning and diagnostics via indoor Bluetooth with teh CoolCloud(TM) phone and tablet application
- 4. High-efficiency variable speed ECM condenser fan motor
- 5. Factory-installed filter drier
- 6. Factory-installed high and low-pressure switches
- 7. Factory-installed sensors monitoring coil and ambient temperature
- 8. High-density foam compressor sound blanket
- 9. Lug connection for ground and contactor
- 10. In communicating mode, only two low voltage wires to the outdoor unit are required
- 11. Color-coded terminal strip for non-communicating set-up
- 12. AHRI Certified - ETL Listed
- 13. Field-selectable boost mode increases compressor speed during unusually high loads
- 14. Copper tube enhanced aluminum fin coil
- 15. Customized control algorithms
- 16. Fully charged for fifteen feet of tubing length
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Wire fan discharge grille
- 5. Baked-on powder-paint finish with 500-hour salt-spray approval
- 6. Single-panel access to controls with space for field-installed accessories
- 7. Service port and controls are accessible while unit is operating
- 8. Compact footprint
- 9. Rust-resistant screws
- 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberAVXC200241
Compressor StagesInverter
Compressor TypeSwing
Cooling Capacity Rated23000 Btu/H
Unit Depth35-1/2 in
Unit Height38-1/4 in
Unit Width35-1/2 in
Efficiency20 SEER
Family DescriptionHigh-Efficiency Split System Inverter AC Up to 24.5 SEER 15 EER
Max. Voltage253 V
Min. Circuit15.2 A
Min. Voltage197 V
Model Efficiency20 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAVXC20
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight210 lb
Airflow Rate High Cooling690 ft‚ ³/min
Indoor Blower FLA2.5 A
Motor Speed TypeVariable Speed ECM
Airflow Rate High Heating690 ft‚ ³/min
