Goodman

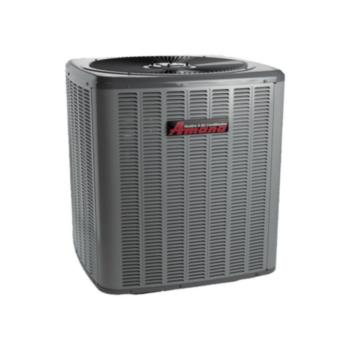

Goodman AVXC200601 Amana Split Air Conditioner 20 SEER (5 tons / 53000 Btu)

Goodman AVXC200601 Amana Split Air Conditioner 20 SEER (5 tons / 53000 Btu)

Dropship

SKU SKU:kpi027-AVXC200601

Regular price $9,014.29 USD
Regular price Sale price $9,014.29 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product details

capacity: 53000 Btu
category: Light Commercial Air Conditioner Condensor
depth: 35-1/2 in
height: 41-3/4 in
manufacturer: Goodman
mpn: AVXC200601
seer: 20 SEER
subcategory: 5 Ton
type: 60000 BTU
voltage: 1 Ph
weight: 321
width: 35-1/2 in

Product Overview

Amana AVXC20 Split Air Conditioner 20 SEER, Inverter, 5 Ton,

Specification :

  • 1. Variable-speed swing and scroll compressors
  • 2. Integrated communicating ComfortBridge(TM) Technology
  • 3. Commissioning and diagnostics via indoor Bluetooth with teh CoolCloud(TM) phone and tablet application
  • 4. High-efficiency variable speed ECM condenser fan motor
  • 5. Factory-installed filter drier
  • 6. Factory-installed high and low-pressure switches
  • 7. Factory-installed sensors monitoring coil and ambient temperature
  • 8. High-density foam compressor sound blanket
  • 9. Lug connection for ground and contactor
  • 10. In communicating mode, only two low voltage wires to the outdoor unit are required
  • 11. Color-coded terminal strip for non-communicating set-up
  • 12. AHRI Certified - ETL Listed
  • 13. Field-selectable boost mode increases compressor speed during unusually high loads
  • 14. Copper tube & enhanced aluminum fin coil
  • 15. Customized control algorithms
  • 16. Fully charged for fifteen feet of tubing length

Cabinet Features :

  • 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
  • 2. Service valves with sweat connections and easy-access gauge ports
  • 3. Engineered sound control top design
  • 4. Wire fan discharge grille
  • 5. Baked-on powder-paint finish with 500-hour salt-spray approval
  • 6. Single-panel access to controls with space for field-installed accessories
  • 7. Service port and controls are accessible while unit is operating
  • 8. Compact footprint
  • 9. Rust-resistant screws
  • 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Additional Information

Manufacturer Part NumberAVXC200601
Compressor StagesInverter
Compressor TypeScroll
Cooling Capacity Rated53000 Btu/H
Unit Depth35-1/2 in
Unit Height41-3/4 in
Unit Width35-1/2 in
Efficiency20 SEER
Family DescriptionHigh-Efficiency Split System Inverter AC Up to 24.5 SEER & 15 EER
Max. Voltage253 V
Min. Circuit31.1 A
Min. Voltage197 V
Model Efficiency20 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAVXC20
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight321 lb
Airflow Rate High Cooling1630 ft‚ ³/min
Indoor Blower FLA2.5 A
Motor Speed TypeVariable Speed ECM
Airflow Rate High Heating1630 ft‚ ³/min
