category:
Heat Pump
depth:
35-3/4 in
height:
36-1/4 in
manufacturer:
Goodman
mpn:
AVZC180481
seer:
18 SEER
subcategory:
4 Ton
type:
48000 BTU
voltage:
1 Ph
weight:
220
width:
35-3/4 in
Product Description

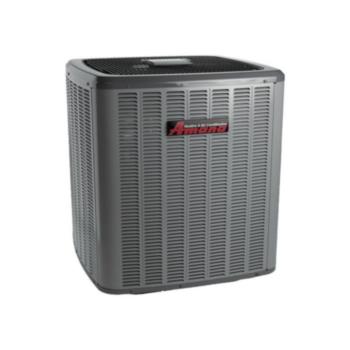

Goodman - AVZC180481 Amana AVZC18 Split Heat Pump 18 SEER HSPF, Variable, 4 Ton, ComfortBridge Technology compatible
Specification :
- 1. Variable-speed swing and scroll compressors
- 2. High-efficiency variable speed ECM condenser fan motor
- 3. Factory-installed filter drier
- 4. Factory-installed suction line accumulator
- 5. Factory-installed compressor crankcase heater
- 6. Factory-installed high-capacity muffler
- 7. Factory-installed high and low-pressure switches
- 8. High-density foam compressor sound blanket
- 9. Factory-installed sensors monitoring coil and ambient temperature
- 10. SmartShift‚ ® technology with short-cycle protection to ensure quiet, reliable defrost
- 11. In communicating mode, only two low voltage wires to the outdoor unit are required
- 12. Contactor with lug connection
- 13. Field-selectable boost mode increases compressor speed during unusually high loads
- 14. Customized control algorithms
- 15. Fully charged for fifteen feet of tubing length
- 16. AHRI Certified-ETL Listed
- 17. Color-coded terminal strip for non-communicating set-up
- 18. Copper tube enhanced aluminum fin coil.
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Wire fan discharge grille
- 5. Baked-on powder-paint finish with 500-hour salt-spray approval
- 6. Single-panel access to controls with space for field-installed accessories
- 7. Service port and controls are accessible while unit is operating
- 8. Compact footprint
- 9. Rust-resistant screws
- 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberAVZC180481
Compressor StagesVariable
Compressor TypeSwing
Unit Depth35-3/4 in
Unit Height36-1/4 in
Unit Width35-3/4 in
Efficiency18 SEER
Family DescriptionHigh-Efficiency Split System Inverter Heat Pump Up to 19 SEER 10 HSPF
Max. Voltage253 V
Min. Circuit28.6 A
Min. Voltage197 V
Model Efficiency18 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAVZC18
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage4 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight220 lb
