capacity:
30000 BTU
category:
Air Handlers for Central Air
depth:
21"
height:
36"
manufacturer:
Goodman
mpn:
AWST30LU1410
weight:
109
width:
24"
Product Description

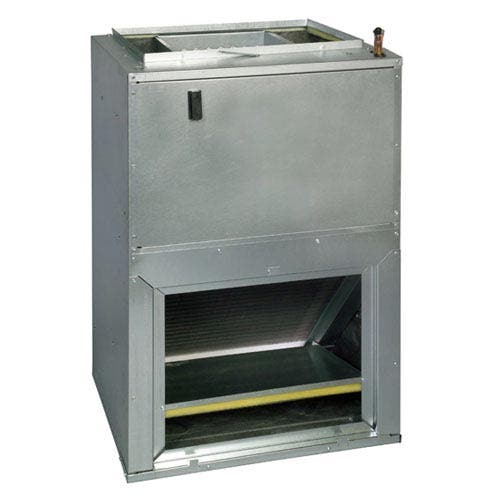

Goodman - AWST30LU1410
The Goodman AWST Air Conditioner Air Handler is designed to be vertically wall or stud mounted. This Air Conditioner Air Handler is housed in a fully insulated, galvanized-steel cabinet. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
- Suitable for use with refrigerants R-410A
- Equipped with a fully adjustable TXV for cooling-only and heat pump operation
- Direct-drive, multi-speed motor allows air volume variation for heating and cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Factory-installed pull-type disconnect
- Aluminum tube coils on all models
- AHRI Certified
- ETL Listed
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2 ½- and 3-ton units) “ front return only
- Small chassis (1 ½- and 2-ton units) “ front or bottom return
- Wall-hanging bracket provided
Additional Information
SKU AWST30LU1410
Weight (in lbs) 109.000000
Brand/Manufacturer Goodman
Additional Information 18" x 20" x 1" Large Chassis Filter
Cooling BTU 30,000 BTU
Blower Motor Multi Speed Direct Drive Motor
Maximum CFM 1168
Horsepower 0.5
Electric Heat 10 Kilowatts
Refrigerant R410A
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208-230 V Single Phase 60 Hz
Max Breaker Size 50/60 Amps
Min. Breaker Size 49/55.8 Amps
Tonnage 2.5 Ton
Fuel Type Electric
Height 36"
Width 24"
Depth 21"
Warranty 10 Years Parts with Online Registration
