Goodman

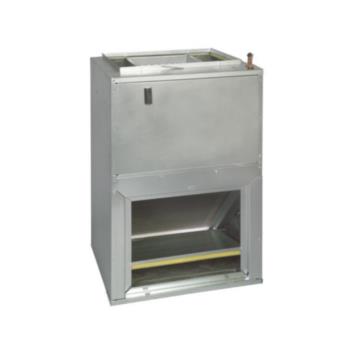

Goodman AWUF180516 AWUF Air Handler (1.5 tons)

Goodman AWUF180516 AWUF Air Handler (1.5 tons)

In Stock - 1 (Available by Tue, Dec 10 - Sat, Dec 14)

SKU SKU:kpi027-AWUF180516

Regular price $509.00 USD
Regular price Sale price $509.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
country_of_origin: US
custom_label_2: in-stock
depth: 16.25 in
height: 36 in
manufacturer: Goodman
mpn: AWUF180516
voltage: 1 Ph
weight: 84
width: 20.25 in

Product Description

Goodman - AWUF180516 AWUF Ducted Wall Mounted Air Handler, Two-Speed PSC Motor, 1.5-3 Ton, 20.25 in Cabinet with Orifice Expansion,

Specification :

  • 1. Equipped with a Check Flowrater for cooling-only and heat pump operation
  • 2. Direct-drive, multi-speed motors allows air volume variation for heating/cooling:
  • 3. Multi-speed ECM: AWUF19, 25, 31, 32, 37
  • 4. Multi-speed PSC motor: AWUF18, 24, 30, 36
  • 5. Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • 6. Aluminum tubing coils on all models
  • 7. Factory-installed pull-type disconnect
  • 8. Thermoplastic drain pan with bottom primary and secondary drain connections
  • 9. AHRI Certified
  • 10. ETL Listed

Cabinet Features :

  • 1. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • 2. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3. Built-in filter rack (filter included)
  • 4. Large chassis (2-1/2 and 3 ton units), front return only
  • 5. Small chassis (1-1/2 and 2 ton units), front or bottom return
  • 6. Wall-hanging bracket provided

Additional Information

Manufacturer Part NumberAWUF180516
Unit Depth16.25 in
Unit Height36 in
Unit Width20.25 in
Family DescriptionWall-Mount Air Handler 1‚ ½ to 3 Tons
Max. Voltage253 V
Min. Circuit23/26.6 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAWUF
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage1.5 tons
Unit TypeIndoor
Unit Weight84 lb
Indoor Blower FLA1.3 A
Motor Speed TypeTwo-Speed PSC
Blower Motor RPM1806 r/min
