capacity:
30000 BTU
category:
Air Handlers for Central Air
country_of_origin:
US
depth:
21"
height:
36"
manufacturer:
Goodman
mpn:
AWUF310816
voltage:
1 Ph
weight:
109
width:
24"
Product Description

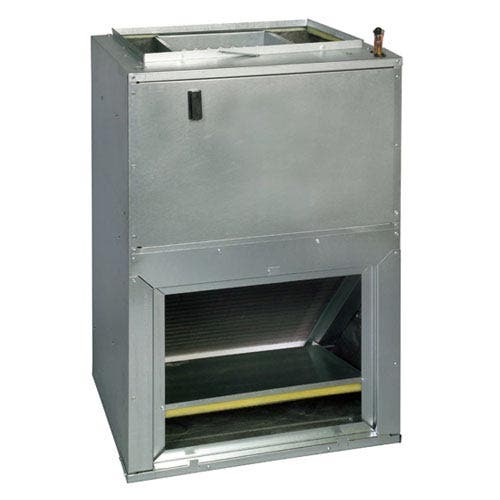

Goodman - AWUF310816
The Goodman AWUF Air Conditioner Air Handler is designed to be vertically wall or stud mounted. This Air Conditioner Air Handler is housed in a fully insulated, galvanized-steel cabinet. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
- Suitable for use with refrigerants R-410A and R-22
- Equipped with a check flowrater for cooling-only and heat pump operation
- Direct-drive, multi-speed motor allows air volume variation for heating and cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Factory-installed pull-type disconnect
- Aluminum tube coils on all models
- AHRI Certified
- ETL Listed
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2 ½- and 3-ton units) “ front return only
- Small chassis (1 ½- and 2-ton units) “ front or bottom return
- Wall-hanging bracket provided
Additional Information
SKU AWUF310816
Weight (in lbs) 109.000000
Brand/Manufacturer Goodman
Cooling BTU 30,000 BTU
Blower Motor Multi Speed - PSC
Maximum CFM 1,090
Electric Heat 8 Kilowatts
Electric Backup Heat Capabilities (Optional) 8 Kilowatts
Refrigerant R410A or R22
Filter Size 18" x 20"
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208-240 1 Phase
Max Breaker Size 40 amps
Tonnage 2.5 Ton
Fuel Type Electric
Height 36"
Width 24"
Depth 21"
Warranty 10 Years with Online Registration
