depth:
21 in
height:
36 in
manufacturer:
Goodman
mpn:
AWUF360816
voltage:
1 Ph
weight:
96
width:
24 in
Product Description

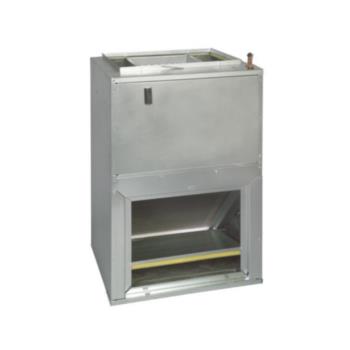

Goodman - AWUF360816 AWUF Ducted Wall Mounted Air Handler, Two-Speed PSC Motor, 1.5-3 Ton, 24 in Cabinet with Orifice Expansion,
Specification :
- 1. Equipped with a Check Flowrater for cooling-only and heat pump operation
- 2. Direct-drive, multi-speed motors allows air volume variation for heating/cooling:
- 3. Multi-speed ECM: AWUF19, 25, 31, 32, 37
- 4. Multi-speed PSC motor: AWUF18, 24, 30, 36
- 5. Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- 6. Aluminum tubing coils on all models
- 7. Factory-installed pull-type disconnect
- 8. Thermoplastic drain pan with bottom primary and secondary drain connections
- 9. AHRI Certified
- 10. ETL Listed
Additional Information
- 1. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- 2. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 3. Built-in filter rack (filter included)
- 4. Large chassis (2-1/2 and 3 ton units), front return only
- 5. Small chassis (1-1/2 and 2 ton units), front or bottom return
- 6. Wall-hanging bracket provided
Unit Depth21 in
Unit Height36 in
Unit Width24 in
Family DescriptionWall-Mount Air Handler 1‚ ½ to 3 Tons
Max. Voltage253 V
Min. Circuit34.9/40 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
FamilyAWUF
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3 tons
Unit TypeIndoor
Unit Weight96 lb
