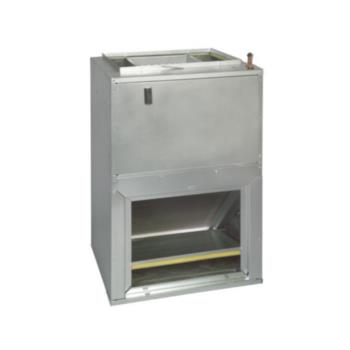

Goodman AWUT241014 Goodman AWUT Air Handler (2 tons)

Product Description

Goodman - AWUT241014 AWUT Ducted Wall Mounted Air Handler, Two-Speed PSC Motor, 1.5-3 Ton, 20-1/4 in Cabinet with TXV Expansion,

Specification :

• 1. AWUT Models: Equipped wit a fully adjustable TXV
• 2. Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• 3. Multi-speed ECM: AWUT 31, 32, 37
• 4. Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• 5. Aluminum tubing coils on all models
• 6. Factory-installed pull-type disconnect
• 7. Thermoplastic drain pan with bottom primary and secondary drain connections
• 8. AHRI Certified and ETL Listed

Cabinet Features :

• 1. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• 2. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• 3. Built-in filter rack (filter included)
• 4. Large chassis (2-1/2 and 3 ton units), front return only
• 5. Small chassis (1-1/2 and 2 ton units), front or bottom return
• 6. Wall-hanging bracket provided
