custom_label_4:
Greater than $100
depth:
21 in
height:
36 in
manufacturer:
Goodman
mpn:
AWUT371016
voltage:
1 Ph
weight:
96
width:
24 in

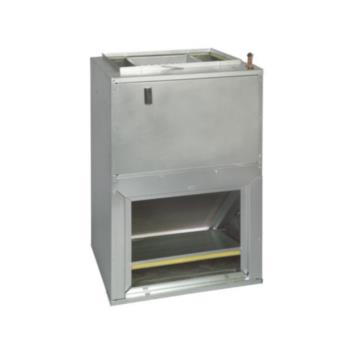

Goodman - AWUT371016 AWUT Ducted Wall Mounted Air Handler, Fixed Speed ECM Motor, 1.5-3 Ton, 24 in Cabinet with TXV Expansion,
Specification :
- 1. AWUT Models: Equipped wit a fully adjustable TXV
- 2. Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- 3. Multi-speed ECM: AWUT 31, 32, 37
- 4. Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- 5. Aluminum tubing coils on all models
- 6. Factory-installed pull-type disconnect
- 7. Thermoplastic drain pan with bottom primary and secondary drain connections
- 8. AHRI Certified and ETL Listed
Additional Information
- 1. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- 2. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 3. Built-in filter rack (filter included)
- 4. Large chassis (2-1/2 and 3 ton units), front return only
- 5. Small chassis (1-1/2 and 2 ton units), front or bottom return
- 6. Wall-hanging bracket provided
Unit Depth21 in
Unit Height36 in
Unit Width24 in
Family DescriptionWall-Mount Air Handler 1‚ ½ to 3 Tons
Max. Voltage253 V
Min. Circuit49/55.8 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyAWUT
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3 tons
Unit TypeIndoor
Unit Weight96 lb
