depth:
21 in
height:
24-1/2 in
manufacturer:
Goodman
mpn:
CHPE3743D4
seer:
17 SEER
weight:
72
width:
26 in
Product Description

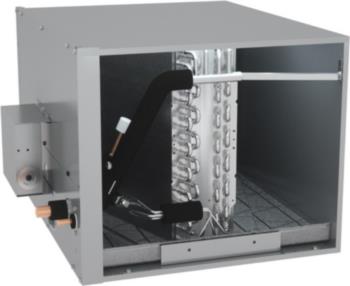

Goodman - CHPE3743D4 CHPE Cased Aluminum Evaporator Coil, Horizontal A, 3-3.5 Ton, 26 in Cabinet with EEV Expansion Device
Specification :
- 1. All-Aluminum evaporator coil
- 2. Optimized for use with R-410A refrigerant
- 3. Some models suitable for use with R-410A or R-22 refrigerant
- 4. Electronic Expansion Valve (EEV) models feature¢Ë†™ Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment¢Ë†™ Cooling and heat pump applications ¢Ë†™ Fault recall of six most recent faults
- 5. CAPT models feature factory-installed thermal expansion valves for cooling and heat pump applications
- 6. Check flowrator for cooling and heat pump applications
- 7. CAPEA,CAPE and CHPE models feature factory-installed electronic expansion valve for precise utility refrigerant control
- 8. Vertical and horizontal models available
- CAPEA models include a single front access panel
- 10. Rust resistant, thermoplastic drain pans featuring a low water-retention design
- 11. DecaBDE-free thermoplastic drain pan with secondary drain connections
- 12. UV-resistant drain pan
- 13. AHRI certified
- ETL listed
Additional Information
- 1. Twenty one inch depth for easier attic access
- 2. Split seam front for easy access (Except CAPEA models)
- 3. Foil-faced insulation covers the internal casing to reduce cabinet condensation
- 4. Galvanized, leather grain-embossed finish
Unit Depth21 in
Unit Height24-1/2 in
Unit Width26 in
Efficiency17 SEER
Family DescriptionCased Horizontal "A" with Internal EEV
Model Efficiency17 SEER
FamilyCHPE
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3.5 tons
Unit TypeIndoor
Unit Weight72 lb
