category:
Multi Positined Air Handler
depth:
60-1/2 in
height:
24 in
manufacturer:
Goodman
mpn:
DAR1204
voltage:
60 Hz / 3 Ph
weight:
430
width:
48-1/2 in
Product Description

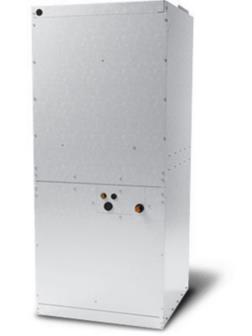

Goodman - DAR1204 10 Ton Ahu Export Only
Specification :
- Upflow or horizontal (left side) installation positions in 7-1/2 and 10-ton cooling only or heat pump applications
- 10-ton DAR model circuited for use with (2) 5-ton cooling-only or heat pump systems, or one 10-ton cooling-only or heat pump system
- DAR models convertible to 460-3-60 from 208/230-3-60
- Transformer and blower relay
- TXV control:
- DAR 7-1/2 ton unit has one (1) expansion valve
- DAR 10-ton unit has two (2) expansion valves
- Draw-thru centrifugal blower is belt-driven for quiet, efficient operation
- Copper tube/aluminum fin coils
Cabinet Features :
- Heavy-gauge, reinforced, galvanized-steel cabinetFully insulated with fiberglass blanketHorizontal and vertical condensate pansBuilt-in filter rack (2¢â‚¬ filter included)Entry on top of panel for both low and high voltageRemovable access panels make servicing of unit faster and easier
Additional Information
Manufacturer Part NumberDAR1204
Unit Depth60-1/2 in
Unit Height24 in
Unit Width48-1/2 in
Family DescriptionMulti-Position, Single-Speed Belt drive, Air Handler, 7.5 10 Tons
Power Frequency60 Hz
Power Phase3 Ph
FamilyDAR
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage10 tons
Unit TypeIndoor
Unit Weight430 lb
