depth:
24 in
height:
60-1/2 in
manufacturer:
Goodman
mpn:
DAT12043
voltage:
208~230 V / 60 Hz / 3 Ph
weight:
430
width:
48-1/2 in
Product Description

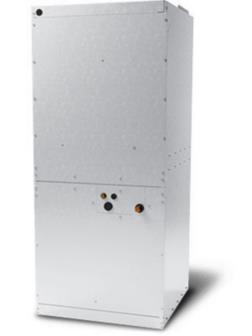

Goodman - DAT12043 Air Handler, Two-Speed PSC Motor, Ton, 48-1/2 in Cabinet with TXV Expansion,
Specification :
- Upflow or horizontal (left side) installation positions in 10-ton cooling only or heat pump applications
- Circuited for use with one (1) 10 ton cooling-only or heat pump system. Also circuited for use with two (2) 5 ton cooling-only units
- TXV control
- Units have two (2) thermal expansion valves
- Dat units feature a 2-speed blower motor
- Draw-thru centrifugal blower is belt driven for quiet, efficient operation
- Copper tube/aluminum fin coils
- Horizontal and vertical condensate pans
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Heavy-gauge, reinforced, galvanized-steel cabinet
- * Fully insulated with fiberglass blanket
- * Built-in filter rack (2" filter included)
- * Entry on top of panel for both low and high voltage
- * Removable access panels make servicing of unit faster and easier
Additional Information
Manufacturer Part NumberDAT12043
Unit Depth24 in
Unit Height60-1/2 in
Unit Width48-1/2 in
Family DescriptionMulti-Position, Two-Speed Belt drive, Air Handler, 7.5 10 Tons
Max. Voltage253 V
Min. Circuit7.5 A
Min. Voltage187 V
Power Frequency60 Hz
Power Phase3 Ph
Power Voltage208-230 V
FamilyDAT
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage10 tons
Unit TypeIndoor
Unit Weight430 lb
Airflow Rate High Cooling4000 ft‚ ³/min
Indoor Blower FLA6.0 A
Motor Speed TypeTwo-Speed PSC
