category:
Gas Furnace
depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
DC80VC0805CX
seer:
0.8
subcategory:
80000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
125
width:
21 in
Product Description

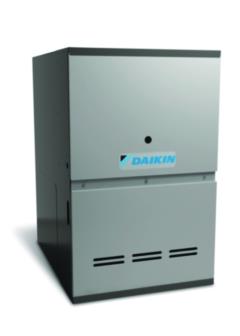

Goodman - DC80VC0805CX Daikin 80% AFUE DC80VC Communicating Gas Furnace Variable Speed ECM, Two Stage, Downflow/Horizontal, 80,000 BTUH/H, Low NOx Daikin One+ Smart Thermostat compatible
Specification :
- Compatible with the Daikin One+ smart thermostat and other Daikin communicating equipment
- Heavy-duty stainless-steel dual-diameter, tubular heat exchanger
- Two-stage gas valve provides quiet, economical heating
- Durable Silicon Nitride igniter
- Quiet two-speed draft inducer
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-Comfort and enhanced dehumidification modes available
- California Low NOx emissions-compliant models available
- For installation in California¢â‚¬â„¢s South Coast Air Quality Management District (SCAQMD) only: This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to a mitigation fee of up to $450
- This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com
- AHRi Certified
- ETL Listed
Cabinet Features :
- * Multi-position installation:
- * Downflow, horizontal left or right.
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) ¢° ¤ 2%
- * Heavy-gauge steel cabinet with durable baked-enamel finish
- * Fully insulated heat exchanger and blower section
Additional Information
Manufacturer Part NumberDC80VC0805CX
Unit Depth28 in
Unit Height33-3/8 in
Unit Width21 in
Efficiency0.8
Family DescriptionTwo-Stage Variable Speed Communicating Gas Furnace 80% AFUE Heating Input: 60,000¢â‚¬œ100,000 BTU/h
Min. Circuit12.1 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDC80VC
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight125 lb
Motor Speed TypeVariable Speed ECM
Airflow Rate High Heating2000 ft‚ ³/min
AFUE80 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity64,000
Blower Motor RPM1075 r/min
NOX Burner TypeLow NOx
