depth:
28-7/8 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
DC92SS0603BN
seer:
0.92
voltage:
1 Ph
weight:
112
width:
17-1/2 in
Product Description

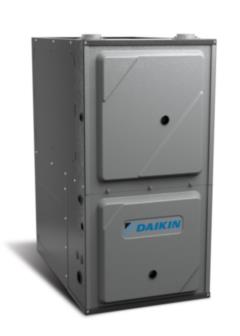

Goodman - DC92SS0603BN Daikin 92% AFUE DC92SS Gas Furnace Multi Speed PSC, Single Stage, Downflow/Horizontal, 60000 BTUH/H,
Specification :
- Heavy-duty stainless-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Multi-speed blower motor
- Quiet single-speed induced draft blower
- Self-diagnostic control board
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Designed for multi-position installation. DM92SS: Upflow, horizontal left or right DC92SS: Downflow, horizontal left or right
- * Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- * Easy-to-install top venting with optional side venting
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) less than 2%
- * Heavy-gauge steel cabinet with durable finish
- * Foil-faced insulated heat exchanger cabinet
- * Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Additional Information
Manufacturer Part NumberDC92SS0603BN
Unit Depth28-7/8 in
Unit Height34-1/2 in
Unit Width17-1/2 in
Efficiency0.92
Family DescriptionSingle-Stage, Multi-Speed Gas Furnace Up to 92% AFUE Heating Input: 40,000¢â‚¬œ120,000 BTU/h
Min. Circuit9.6 A
Model Efficiency0.92
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDC92SS
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight112 lb
Airflow Rate High Cooling1200 ft‚ ³/min
Motor Speed TypeMulti Speed PSC
Heating Capacity Rated60000 Btu/H
AFUE92 %
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity55200
Blower Motor RPM1075 r/min
