category:
Gas Furnace
depth:
28-7/8 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
DC97MC1005CN
seer:
0.97
subcategory:
100000 BTU
type:
97% AFUE
voltage:
1 Ph
weight:
146
width:
21 in
Product Description

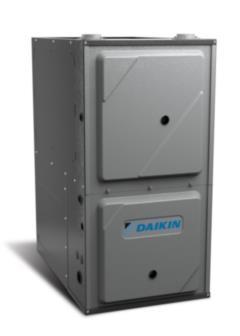

Goodman - DC97MC1005CN Daikin 97% AFUE DC97MC Communicating Gas Furnace Variable Speed ECM, Modulating, Downflow/Horizontal, 100000 BTUH/H, Daikin One+ Smart Thermostat compatible
Specification :
- Compatible with the Daikin One+ smart thermostat and other Daikin communicating equipment
- Heavy-duty stainless-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Self-calibrating modulating gas valve auto-configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history outputto a dual 7-segment display
- Color-coded low-voltage terminals with provisions for electronic air cleanerand humidifier
- Efficient and quiet variable-speed airflow system gently ramps up or downaccording to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
Cabinet Features :
- * Designed for multi-position installation. DC97MC: downflow, horizontal left or right
- * Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- * Easy-to-install top venting with optional side venting
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) less than 2%
- * Heavy-gauge steel cabinet with durable finish
- * Fully insulated heat exchanger and blower section
- * Airtight solid bottom or side return with easy-cut tabs for effortless removalin bottom air-inlet applications
Additional Information
Manufacturer Part NumberDC97MC1005CN
Unit Depth28-7/8 in
Unit Height34-1/2 in
Unit Width21 in
Efficiency0.97
Family DescriptionModulating, Variable-Speed ECM Communicating Gas Furnace Up to 98% AFUE Heating Input: 60,000¢â‚¬œ120,000 BTU/h
Min. Circuit15.4 A
Model Efficiency0.97
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDC97MC
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight146 lb
Airflow Rate High Cooling2000 ft‚ ³/min
Motor Speed TypeVariable Speed ECM
Heating Capacity Rated100000 Btu/H
AFUE97 %
High-Fire Input Capacity100000 Btu
High-Fire Output Capacity97000
Blower Motor RPM1075 r/min
