category:
Gas Furnace
depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
DM80HS1205DX
seer:
0.8
subcategory:
120000 BTU
type:
80% AFUE
voltage:
1 Ph
weight:
132
width:
24-1/2 in
Product Description

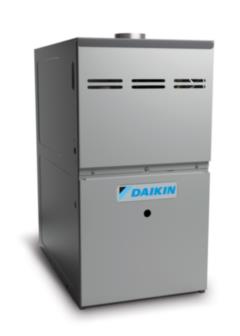

Goodman - DM80HS1205DX Daikin 80% AFUE DM80HS Gas Furnace Multi Speed PSC, Two Stage Convertible, Upflow/Horizontal, 120,000 BTUH/H, Low NOx
Specification :
- Stainless-steel dual-diameter, tubular heat exchanger
- Two-stage convertible gas valve automatically adjusts to high or low stage
- Durable Silicon Nitride igniter
- Quiet single speed draft inducer
- Quiet four-speed direct-drive circulating blower motor
- Self-diagnostic control board with constant memory fault code
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Multi-speed blower motor
- Low continuous fan speed options offer quiet air circulation
- California Low NOx emissions standards models available
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Multi-position installation: Upflow, horizontal left or right
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) less than 2%
- * Heavy-gauge steel cabinet with durable baked-enamel finish
- * Fully insulated heat exchanger and blower section
Additional Information
Manufacturer Part NumberDM80HS1205DX
Unit Depth28 in
Unit Height33-3/8 in
Unit Width24-1/2 in
Efficiency0.8
Family DescriptionTwo-Stage Convertible Multi-Speed Gas Furnace 80% AFUE Heating Input: 40,000 ¢â‚¬œ 140,000 BTU/h
Min. Circuit14.7 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM80HS
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight132 lb
Airflow Rate High Cooling2000 ft‚ ³/min
Motor Speed TypeMulti Speed PSC
Heating Capacity Rated120000 Btu/H
AFUE80 %
High-Fire Input Capacity120000 Btu
High-Fire Output Capacity96,000
Blower Motor RPM1075 r/min
NOX Burner TypeLow NOx
