depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
DM80SE1205DX
seer:
0.8
voltage:
1 Ph
weight:
132
width:
24-1/2 in
Product Description

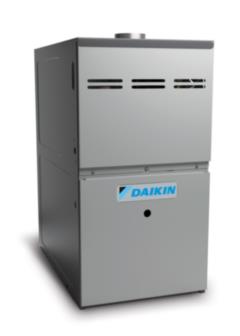

Goodman - DM80SE1205DX Daikin 80% AFUE DM80SE Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 120,000 BTUH/H, Low NOx
Specification :
- Energy efficient multi-speed ECM blower motor
- Heavy-duty stainless-steel tubular heat exchanger
- Durable Silicon Nitride igniter
- Quiet two-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Low continuous fan speed options offer quiet air circulationAll models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Installations available in upflow and horizontal left or right
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) less than 2%
- * Heavy-gauge steel cabinet with durable baked-enamel finish
- * Foil faced insulated heat exchanger
Additional Information
Manufacturer Part NumberDM80SE1205DX
Unit Depth28 in
Unit Height33-3/8 in
Unit Width24-1/2 in
Efficiency0.8
Family DescriptionSingle-Stage, Multi-Speed ECM Gas Furnace Up to 80% AFUE Input: 40,000¢â‚¬œ120,000 BTU/h
Min. Circuit15.3 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM80SE
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight132 lb
Airflow Rate High Cooling2048 ft‚ ³/min
Motor Speed TypeMulti Speed ECM
Heating Capacity Rated120000 Btu/H
Airflow Rate High Heating1630 ft‚ ³/min
AFUE80 %
High-Fire Input Capacity120000 Btu
High-Fire Output Capacity96,000
Blower Motor RPM1200 r/min
NOX Burner TypeLow NOx
