category:
Gas Furnace
depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
DM80SN0803BX
seer:
0.8
subcategory:
80000 BTU
type:
96% AFUE
voltage:
1 Ph
weight:
116
width:
17.5 in
Product Description

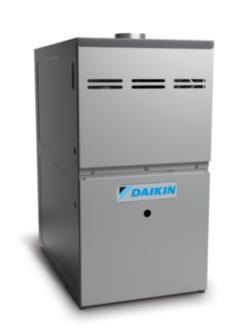

Goodman - DM80SN0803BX Daikin 80% AFUE DM80SN Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 80000 Btu BTUH/H,
Specification :
- Heavy-duty stainless-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Quiet single-speed induced draft blower
- Self-diagnostic control board with constant memory fault history output to a 3-digit 7 segment LED display and push buttons
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Multi-speed (9-speed tap) ECM blower motor
- Multiple continuous fan speed options offer quiet air circulation
- California Low NOx emissions-compliant models available
- Can no longer be installed in California¢â‚¬â„¢s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Designed for multi-position installation: Upflow, horizontal left or right
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) = 2%
- * Heavy-gauge steel cabinet with durable finish
- * Foil faced insulated heat exchanger
Additional Information
Manufacturer Part NumberDM80SN0803BX
Unit Depth28 in
Unit Height33-3/8 in
Unit Width17.5 in
Efficiency0.8
Family DescriptionSingle-Stage, 9-Speed ECM Upflow/Horizontal Gas Furnace Up to 80% AFUE Input: 40,000¢â‚¬œ120,000 BTU/h
Min. Circuit7.7 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM80SN
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight116 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1255 ft‚ ³/min
AFUE80 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity64,000
