depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
DM80SS0805CX
seer:
0.8
voltage:
1 Ph
weight:
114
width:
21 in
Product Description

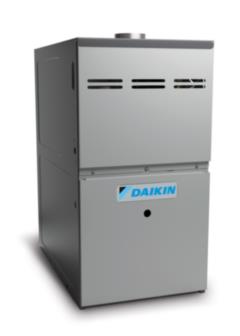

Goodman - DM80SS0805CX Daikin 80% AFUE DM80SS Gas Furnace Multi Speed PSC, Single Stage, Upflow/Horizontal, 80,000 BTUH/H, Low NOx
Specification :
- Heavy-duty stainless-steel, dual-diameter tubular heat exchanger
- Single-stage gas valve
- Durable Hot-surface igniter
- Quiet, single-speed draft inducer
- Self-diagnostic control board
- Color-coded low-voltage terminals
- Multi-speed blower motor
- California Low NOx emissions models available
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Installation: DM80SS: upflow, horizontal left or right, DD80SS: dedicated downflow
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) less than 2%
- * Heavy-gauge steel cabinet with durable baked-enamel finish
- * Foil faced insulated heat exchanger
Additional Information
Manufacturer Part NumberDM80SS0805CX
Unit Depth28 in
Unit Height33-3/8 in
Unit Width21 in
Efficiency0.8
Family DescriptionSingle-Stage, Multi-Speed Gas Furnaces 80% AFUE Heating Input: 40,000 ¢â‚¬œ 140,000 BTU/h
Min. Circuit12.5 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM80SS
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight114 lb
Airflow Rate High Cooling2000 ft‚ ³/min
Motor Speed TypeMulti Speed PSC
Heating Capacity Rated80000 Btu/H
AFUE80 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity64,000
Blower Motor RPM1075 r/min
NOX Burner TypeLow NOx
